MITSUBISHI RV-7F

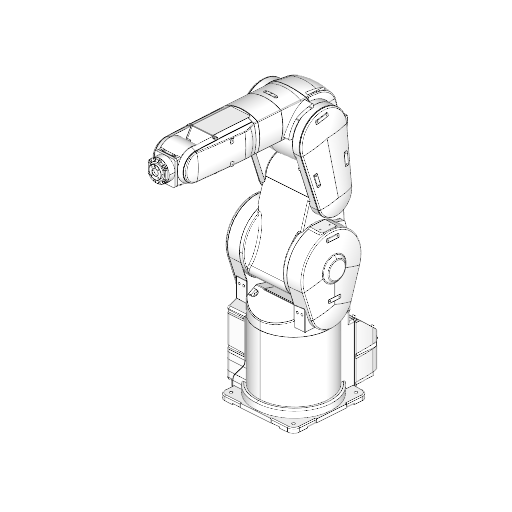

Industrial Robot MITSUBISHI RV-7F

Specifications

Type

Industrial Robot

Brand

Mitsubishi

Model

RV-7F

Axes

6

Payload

7 kg

Reach

713 mm

Repeatability

0.02 mm

Weight

65 kg

Speed at rated payload

11064 mm/s

IP rating

IP40 (standard) / IP67 (oil mist or optional)

Mounting orientation

Floor, Ceiling, Wall (wall-mounted with limitations in J1 axis)

Controller

CR800-D / CR800-R

Power supply

1-phase 200-230 V AC

Power consumption

2000 VA

Tool flange

ISO 9409-1-31.5

Certifications

CE, Machinery Directive, EMC Directive, RoHS, Korea Safety Certification

Cleanroom class

ISO class 3

Safety functions

STO (Safe Torque Off), SS1 (Safe Stop 1), SS2 (Safe Stop 2), SOS (Safe Operating Stop), SLS (Safely-Limited Speed), SLP (Safely-Limited Position)

Communication interfaces

LAN ×1 (100BASE-TX), 8 inputs / 8 outputs for tool wiring

Download MITSUBISHI RV-7F digital twin

Start for free
The MITSUBISHI RV-7F is a high-performance industrial robot featuring six axes, a payload capacity of 7 kg, and a reach of 713 mm. Designed for precision and efficiency, it offers an impressive repeatability of 0.02 mm and maximum speeds up to 15,300 mm/s, making it ideal for a variety of automation applications. With its flexible mounting options, including floor, ceiling, and wall orientations, along with robust safety functions and a cleanroom class rating of ISO class 3, the RV-7F is engineered to meet diverse industrial demands while ensuring compliance with multiple safety and environmental standards.
3D View

What are the technology applications of RV-7F?

MITSUBISHI RV-7F is a versatile robot suitable for a wide range of industrial applications.

Primary applications of MITSUBISHI RV-7F:Assembly, Machine Tending, Pick and place, Robot welding. But we recommend to consult with your robot supplied or the manufacturer.
