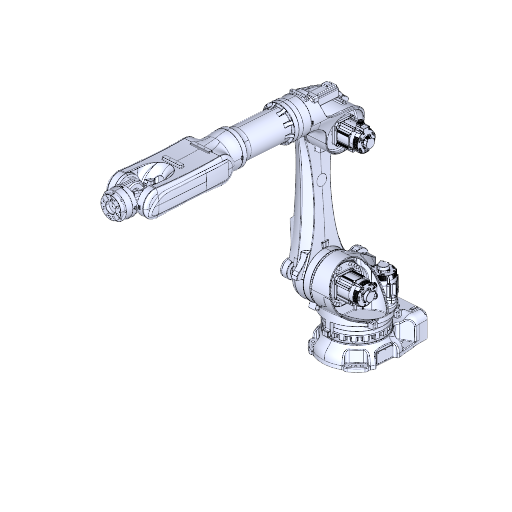

MOKA MB180-3200

Specifications

Type

Industrial Robot

Brand

MOKA

Model

MB180-3200

Axes

Payload

180 kg

Reach

3200 mm

Repeatability

0.06 mm

Weight

1300 kg

IP rating

J1, J2 axes IP54; J3-J6 axes IP67

Mounting orientation

Floor-mounted (落地式)

Controller

Built-in AC servo software position control with teach pendant; external axis optional

Power supply

Three-phase AC 380V 50/60Hz

Certifications

Communication interfaces

EtherCAT, TCP/IP; RS485, RS422, RS232, CAN, USB

Download MOKA MB180-3200 digital twin

The Industrial Robot MOKA MB180-3200 is a cutting-edge solution designed for high-performance automation tasks, featuring six axes with a payload capacity of 180 kg and a reach of 3200 mm. With a remarkable repeatability of 0.06 mm and a maximum speed of 280 °/s on axis-6 without payload, this robust robot weighs 1300 kg and is suitable for various industrial applications. Its built-in AC servo software position control, multiple communication interfaces, and IP protection ratings, make the MOKA MB180-3200 a versatile choice for demanding environments.

What are the technology applications of MB180-3200?

MOKA MB180-3200 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of MOKA MB180-3200:Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplied or the manufacturer.
