Industrial Robot MOTOMAN NEX35 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Motoman

Model

NEX35

Axes

Payload

35 kg

Reach

2060 mm

Repeatability

0.04 mm

Weight

370 kg

Maximum speed

400 °/s

Speed at rated payload

400 °/s

IP rating

IP67

Mounting orientation

Floor

Controller

MOTOMAN NEXT with NVIDIA-based ACU

Power supply

2.5 kVA

Power consumption

2.5 kVA

Safety functions

Axis Range Limit, Axis Speed Monitor, Robot Range Limit, Speed Limit functions (functional safety via YRC1000 safety circuit board and safety I/O expansion)

Communication interfaces

Integrated Ethernet (Cat6), Media cables to flange

The MOTOMAN NEX35 is a high-performance industrial robot designed for a variety of automation tasks, featuring six axes and a payload capacity of 35 kg. With an impressive reach of 2060 mm and repeatability of 0.04 mm, this robot excels in precision applications. It is equipped with the advanced MOTOMAN NEXT controller, powered by NVIDIA technology, ensuring efficient performance with a maximum speed of 400 °/s and robust safety features, all housed in an IP67-rated design suitable for floor mounting.

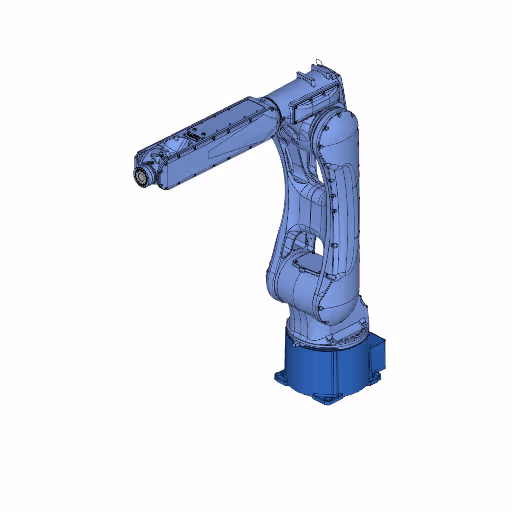

3D View

What are the technology applications of NEX35?

MOTOMAN NEX35 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of MOTOMAN NEX35: Assembly, Dispensing, Machine Tending, Pick and place, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.
