Cobot OMRON RT6-4111301 Specs and Applications

Specifications

Type

Cobot

Brand

OMRON

Model

RT6-4111301

Axes

Payload

20 kg

Reach

1300 mm

Repeatability

0.1 mm

Weight

33 kg

Maximum speed

4 m/s

Speed at rated payload

1.3 m/s

IP rating

IP54

Mounting orientation

Pedestal/Floor, Wall, Ceiling

Controller

Built-in TM Series control box (HW3.2)

Power supply

Certifications

Performance Level d (EN ISO 13849-1); SIL 2 (IEC 61508); IP54 protection

Cleanroom class

ISO Class 3

Safety functions

SIL 2 according to IEC 61508; Performance Level d according to EN ISO 13849-1

Communication interfaces

Ethernet TCP/IP, MODBUS Master, MODBUS Slave, MODBUS/TCP, Serial RS-232C

The OMRON RT6-4111301 is a versatile 6-axis cobot designed for industrial automation applications, offering a payload capacity of up to 20 kg and a reach of 1300 mm. With a repeatability of 0.1 mm and a maximum speed of 4 m/s, this cobot is equipped for precise and efficient operation, while its robust design features an IP54 rating for environmental protection. The built-in TM Series control box ensures seamless communication through multiple interfaces, making the RT6-4111301 an excellent choice for various mounting orientations including pedestal, wall, and ceiling installations.

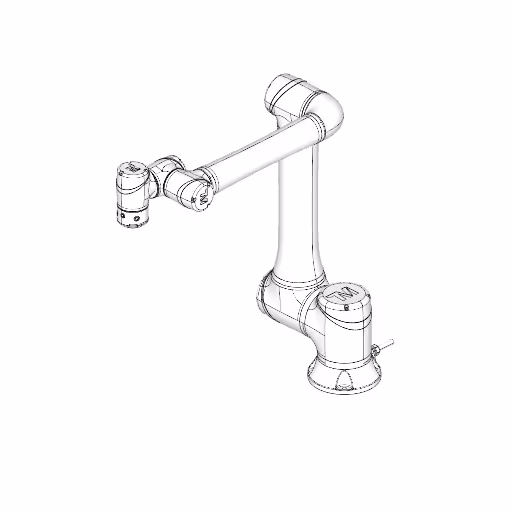

3D View

What are the technology applications of RT6-4111301?

OMRON RT6-4111301 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of OMRON RT6-4111301: Assembly, Dispensing, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

OMRON RT6-4111301 applications programmed with ENCY Robot

Pick and place

Polishing

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase OMRON RT6-4111301 or request a quote, please contact the manufacturer or an authorized local supplier.
