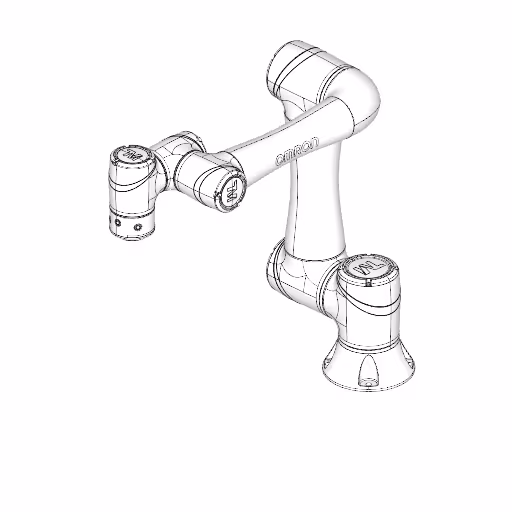

Cobot OMRON TM5MX-900 Specs and Applications

Specifications

Type

Cobot

Brand

OMRON

Model

TM5MX-900

Axes

Payload

4 kg

Reach

900 mm

Repeatability

0.05 mm

Weight

22.6 kg

Maximum speed

4 m/s

Speed at rated payload

1.4 m/s

IP rating

IP54 (robot arm); Control box IP32; Robot stick IP40

Mounting orientation

Wall, Table, Ceiling

Controller

TM flow-based control via built-in control box (HW 3.2 hardware)

Power supply

100-240 VAC, 50/60 Hz or 22-60 VDC

Power consumption

220 W

Tool flange

110 mm diameter, 4× Ø11.00 or M10×12 mounting holes, pitch circle Ø155.56; ISO 9409-1-50-4 mounting flange

Certifications

EN ISO 10218-1, EN ISO 13849-1 (PL d), IEC 61508 SIL 2

Cleanroom class

ISO Class 3

Safety functions

Performance level d according to EN ISO 13849-1; SIL 2 according to IEC 61508; built-in safety features meeting ISO 10218-1

Communication interfaces

RS-232, Ethernet TCP/IP, Modbus TCP/RTU (master & slave), optional PROFINET, optional EtherNet/IP

The OMRON TM5MX-900 is a state-of-the-art 6-axis collaborative robot (cobot) designed for industrial automation applications. With a payload capacity of 4 kg and a reach of 900 mm, this versatile robot boasts a repeatability of 0.05 mm and can operate at maximum speeds of up to 4 m/s, making it ideal for precise and efficient tasks. It features robust IP ratings, multiple mounting orientations, and comprehensive communication interfaces, ensuring reliable performance across various operational environments.

3D View

What are the technology applications of TM5MX-900?

OMRON TM5MX-900 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of OMRON TM5MX-900: Assembly, Dispensing, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.
