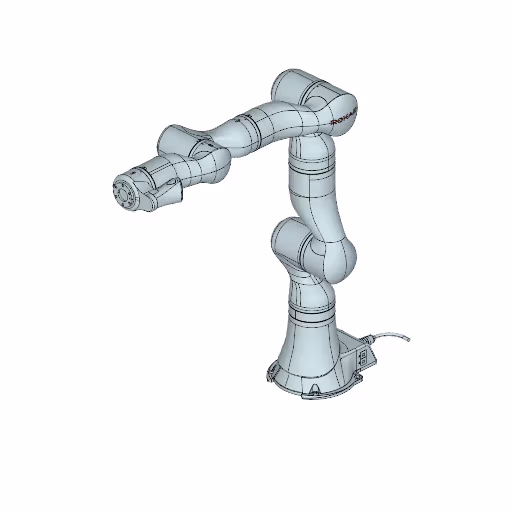

Cobot ROKAE xMate ER3 Specs and Applications

Specifications

Type

Cobot

Brand

ROKAE

Model

xMate ER3

Axes

Payload

3 kg

Reach

1010 mm

Repeatability

0.03 mm

Weight

21 kg

Maximum speed

3 m/s

Speed at rated payload

3 m/s

IP rating

IP54

Mounting orientation

任意角度安装 (any-angle mounting)

Controller

Integrated controller built into robot base

Power supply

90-264VAC, 47-63Hz / 48VDC

Power consumption

200 W

Tool flange

Force sensing tool flange; force x-y-z, torque x-y-z

Certifications

CE; ISO 15066; IEC 60601-1; IEC 60601-1-2; SEMI; NSF; SGS NRTL; EAC; Function Safety (RSC), MD/EMC

Cleanroom class

ISO Class 5

Safety functions

Hand-held enable 1 path; hand-held emergency stop 1 path; collision detection; high-dynamic force control; position and force control

Communication interfaces

TCP/IP 1000Mbit; Modbus TCP; Profinet; Ethernet/IP; DeviceNet; CC-Link; CC-Link IE Field Basic

Introducing the Cobot ROKAE xMate ER3, a versatile 6-axis collaborative robot designed for a range of industrial automation tasks. With a payload capacity of 3 kg and a reach of 1010 mm, this compact unit offers exceptional repeatability of 0.03 mm and maximum speed of 3 m/s. Its integrated controller and robust safety features, including collision detection and position force control, make it suitable for demanding environments, including ISO Class 5 cleanrooms, ensuring reliable performance across various applications.

3D View

What are the technology applications of xMate ER3?

ROKAE xMate ER3 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of ROKAE xMate ER3: Assembly, Dispensing, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.
