ROZUM PULSE75

Cobot

ROZUM6 axesDigital twin for ENCY Robot

About

The Cobot ROZUM PULSE75 is a versatile six-axis robotic arm designed for industrial automation with a payload capacity of 6 kg and a reach of 750 mm. With a maximum speed of 2000 mm/s and a repeatability of 0.1 mm, it ensures precise performance in various applications. This collaborative robot features an IP40 rating, supports multiple mounting orientations, and is equipped with an in-house RDrive servo motor controller, making it ideal for deployment in dynamic work environments while ensuring safety and ease of integration through its advanced communication interfaces.

What are the technology applications of PULSE75?

ROZUM PULSE75 is a versatile robot suitable for a wide range of industrial applications. Primary applications of ROZUM PULSE75: Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.

ROZUM PULSE75 applications programmed with ENCY Robot

Pick and place

Polishing

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase ROZUM PULSE75 or request a quote, please contact the manufacturer or an authorized local supplier.

Download ROZUM PULSE75 digital twin

Start for free

Specifications

General

Type: Cobot
Brand: ROZUM
Model: PULSE75
Axes: 6

Performance

Payload: 6 kg
Reach: 750 mm
Repeatability: 0.1 mm
Weight: 12.6 kg
Maximum speed: 2000 mm/s
Speed at rated payload: 2000 mm/s

Environment

IP rating: IP40
Mounting orientation: Any flat surface: floor, wall, ceiling, over a table, part of mobile installation

Integration

Controller: In-house RDrive servo motor controller with built-in dual encoders, closed-loop control
Power supply: DC 48V for arm, AC 220V for controller
Tool flange: ISO 9409-1-50-4-M6
Communication interfaces: Ethernet (static or dynamic IP), Web interface, REST API
Safety functions: Collaborative robot safety, emergency stop, ‘untwisting mode’ (cable twist protection), allowed to work in direct contact with humans
Certifications: EAC / EAEU declarations, ISO 10218-1:2011, ANSI, RIA R15.06

Other Cobot by ROZUM

All ROZUM components

3DStart for free

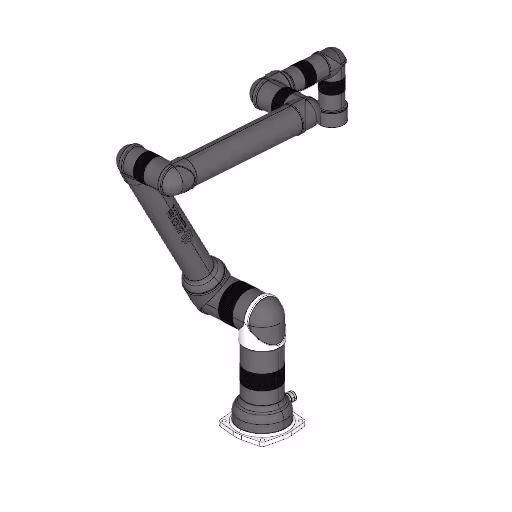

ROZUM PULSE90

Axes: 6
Payload: 4 kg
Reach: 900 mm
Repeatability: 0.1 mm
Weight: 13.6 kg

CobotROZUM

3DStart for free

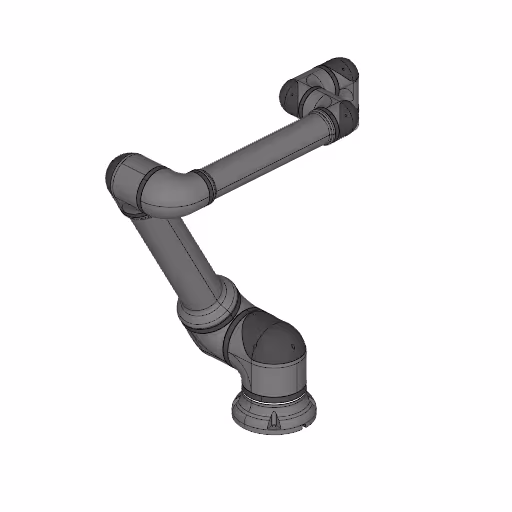

ROZUM RC10
