Industrial Robot STEP SR50-2180 Specs and Applications

Specifications

Type

Industrial Robot

Brand

STEP

Model

SR50-2180

Axes

Payload

50 kg

Reach

2180 mm

Repeatability

0.06 mm

Weight

560 kg

Mounting orientation

ground

Safety functions

collision detection, soft float

Communication interfaces

supports multiple bus communications, built-in IO

The Industrial Robot STEP SR50-2180 is a highly advanced six-axis robot designed for precision and efficiency in automated environments. With a substantial payload capacity of 50 kg and a reach of 2180 mm, this robust solution ensures meticulous operation with a repeatability of just 0.06 mm. Equipped for ground mounting, it features essential safety functions like collision detection and soft float, while also supporting various communication interfaces for seamless integration into industrial automation systems.

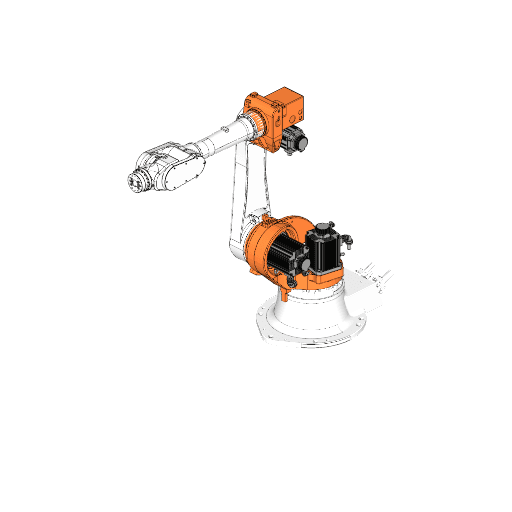

3D View

What are the technology applications of SR50-2180?

STEP SR50-2180 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of STEP SR50-2180: Deburring, Grinding, Multiaxis cutting, Polishing, Robot milling. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

STEP SR50-2180 applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot milling

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase STEP SR50-2180 or request a quote, please contact the manufacturer or an authorized local supplier.
