Industrial Robot TORMACH ZA06 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Tormach

Model

ZA06

Axes

Payload

6 kg

Reach

975 mm

Repeatability

0.5 mm

Weight

65 kg

Maximum speed

360 °/s

Speed at rated payload

360 °/s

IP rating

IP65

Operating temperature

5 to 38 °C

Controller

PathPilot (built on ROS)

Power supply

200-240 Vac, 50/60 Hz, single-phase

Power consumption

20 A

Tool flange

ISO 9409-1-50-4-M6

Safety functions

Dedicated safety input (eStop), safety-rated digital I/O, servo brakes; general industrial safety functions

Communication interfaces

Ethernet-based ROS communication; digital I/O (M12), user and safety inputs/outputs

The Industrial Robot TORMACH ZA06 is a versatile 6-axis automation solution designed for high precision and efficiency in industrial applications. With a payload capacity of 6 kg and a reach of 975 mm, this robot delivers exceptional repeatability of 0.5 mm and operates at a maximum speed of 360 °/s. Built to withstand industrial environments, it features an IP65 rating and is powered by the PathPilot controller, ensuring reliable performance across a wide temperature range of 5 to 38 °C.

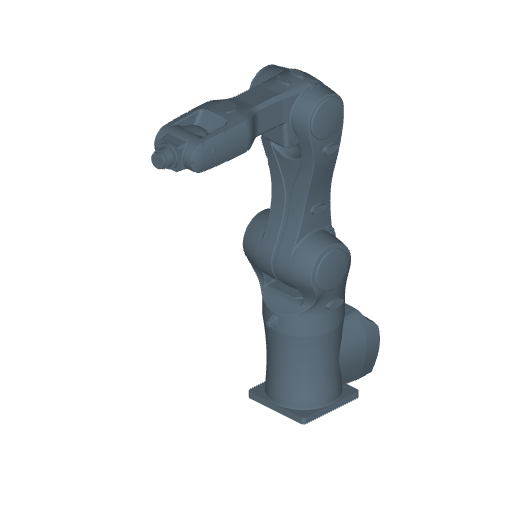

3D View

What are the technology applications of ZA06?

TORMACH ZA06 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of TORMACH ZA06: Deburring, Machine Tending, Multiaxis cutting, Pick and place, Robot milling. But we recommend to consult with your robot supplier or the manufacturer.
