Cobot UFACTORY Lite 6 (LI10XX) Specs and Applications

Specifications

Type

Cobot

Brand

uFactory

Model

Lite 6 (LI10XX)

Axes

Payload

0.6 kg

Reach

440 mm

Repeatability

0.5 mm

Weight

8 kg

Maximum speed

500 mm/s

Speed at rated payload

500 mm/s

IP rating

IP40

Mounting orientation

Any Direction

Controller

Built-in Control Box with integrated controller

Power supply

24V DC, 14.66A

Power consumption

150 W

Tool flange

DIN ISO 9409-1-A50/63 (M5×6)

Certifications

CE; RoHS

Cleanroom class

ISO Class 5

Safety functions

Emergency Stop; Protective Stop; Collision Detection; Stop Category 1 & 2; Safety IO redundancy; Safeguard Reset

Communication interfaces

Gigabit Ethernet (Private TCP), RS-485 Master & Slave; Modbus RTU for end effector

The Cobot UFACTORY Lite 6 (LI10XX) is a versatile 6-axis robotic arm designed for precise automation tasks with a payload capacity of 0.6 kg and a reach of 440 mm. Weighing only 8 kg, it supports a maximum speed of 500 mm/s and boasts a repeatability of 0.5 mm, making it ideal for applications that require accuracy and efficiency. With its built-in control box, robust safety functions, and compatibility with various communication interfaces, this cobot meets the demands of industrial automation while conforming to ISO Class 5 cleanroom standards.

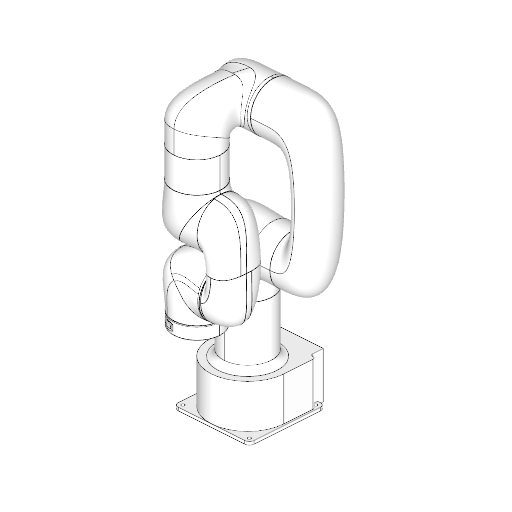

3D View

What are the technology applications of Lite 6 (LI10XX)?

UFACTORY Lite 6 (LI10XX) is a versatile robot suitable for a wide range of industrial applications.

Primary applications of UFACTORY Lite 6 (LI10XX): Assembly, Deburring, Dispensing, Machine Tending, Pick and place. But we recommend to consult with your robot supplier or the manufacturer.
