Cobot UNIVERSAL UR10 Specs and Applications

Specifications

Type

Cobot

Brand

Universal

Model

UR10

Axes

Payload

10 kg

Reach

1300 mm

Repeatability

0.100 mm

Weight

29 kg

Maximum speed

1 m/s

Speed at rated payload

1 m/s

IP rating

IP54

Mounting orientation

Floor, Wall, Ceiling (any orientation)

Controller

CB3 control box

Power supply

100-240 VAC, 50-60 Hz

Power consumption

350 W

Tool flange

ISO 9409-1-50-4-M6

Certifications

EN ISO 10218-1, ISO TS 15066, CE

Cleanroom class

ISO Class 6

Safety functions

Multiple built-in safety-related functions according to ISO 13849-1, Performance Level d (PL d), including emergency stop and safeguard stop

Communication interfaces

Ethernet (100 Mbps), Modbus TCP, controller I/O (24V digital/analog), tool I/O, USB

The Cobot UNIVERSAL UR10 is a versatile 6-axis robotic arm designed for industrial automation. With a payload capacity of 10 kg and a reach of 1300 mm, it boasts a repeatability of 0.100 mm and maximum speed of 1 m/s, making it ideal for various applications. This IP54 rated model can be mounted in any orientation and features advanced safety functions compliant with ISO standards, ensuring reliable and efficient performance in a cleanroom environment classified as ISO Class 6.

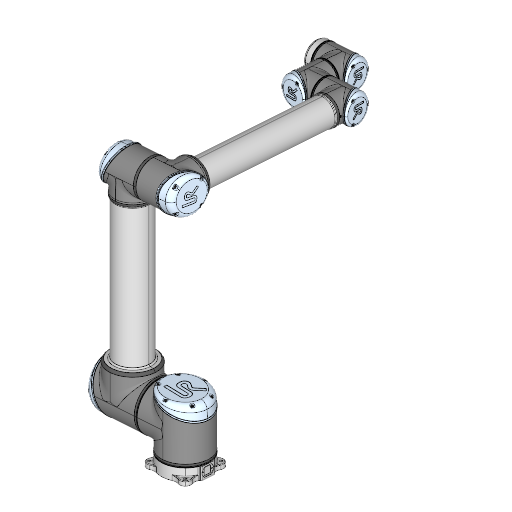

3D View

What are the technology applications of UR10?

UNIVERSAL UR10 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of UNIVERSAL UR10: Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.
