Cobot UNIVERSAL UR12e Specs and Applications

No image

Specifications

Type

Cobot

Brand

Universal

Model

UR12e

Axes

Payload

12.5 kg

Reach

1300 mm

Repeatability

0.05 mm

Weight

33.5 kg

Maximum speed

4 m/s

Speed at rated payload

1 m/s

IP rating

IP54

Mounting orientation

Any orientation

Controller

CB5.5 / CB5.6 (OEM AC or DC) using PolyScope 5 or PolyScope X GUI

Power supply

100-240 VAC, 47-440 Hz (AC or OEM DC bus / battery depending on model)

Power consumption

615 W

Tool flange

M8 8-pin female, EN ISO-9409-1-50-4-M6

Certifications

EN ISO 10218-1, EN ISO 13849-1, CHINA RoHS, KCC, KC, TÜV Rheinland certified

Cleanroom class

ISO Class 6

Safety functions

17 configurable safety functions, PLd Category 3 in accordance with EN ISO 13849-1

Communication interfaces

MODBUS TCP, PROFINET, Ethernet/IP adapter, ROS / ROS2, USB 2.0 & USB 3.0, Mini DisplayPort

The Cobot UNIVERSAL UR12e is a versatile 6-axis industrial robot designed for precise automation tasks, featuring a payload capacity of 12.5 kg and a reach of 1300 mm. With a repeatability of 0.05 mm and a maximum speed of 4 m/s, this robot is ideal for diverse applications while maintaining an IP54 rating for protection against dust and water. Compatible with CB5.5 and CB5.6 controllers and equipped with multiple communication interfaces, the UR12e ensures seamless integration into any automated environment.

3D View

What are the technology applications of UR12e?

UNIVERSAL UR12e is a versatile robot suitable for a wide range of industrial applications.

Primary applications of UNIVERSAL UR12e: Assembly, Deburring, Dispensing, Machine Tending, Pick and place. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

UNIVERSAL UR12e applications programmed with ENCY Robot

Pick and place

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase UNIVERSAL UR12e or request a quote, please contact the manufacturer or an authorized local supplier.

Other Cobot by Universal

Details

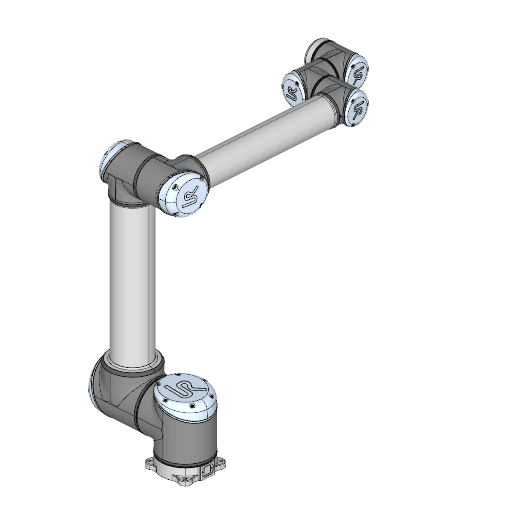

UNIVERSAL UR10

Details

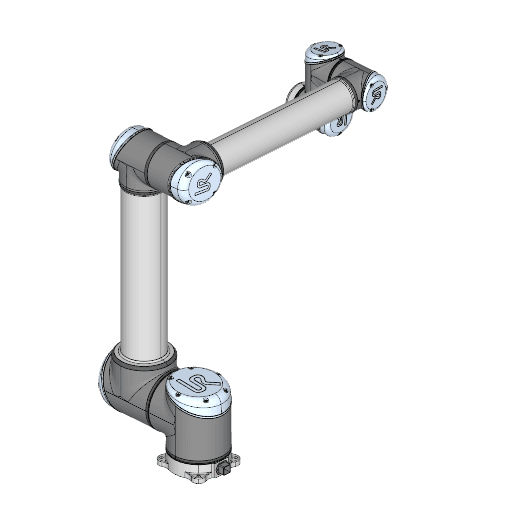

UNIVERSAL UR10 (Alternative)
