UNIVERSAL UR3e

Cobot

Universal6 axesDigital twin for ENCY Robot

About

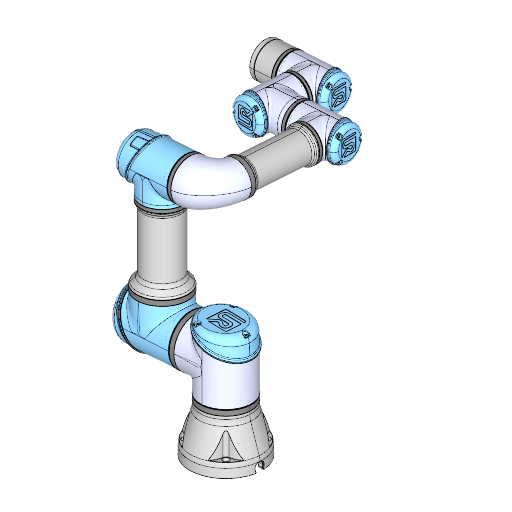

The Cobot UNIVERSAL UR3e is a state-of-the-art six-axis robotic arm designed for versatile industrial automation applications. With a payload capacity of 3 kg and a reach of 500 mm, this compact robot features a repeatability of 0.030 mm, making it ideal for precise tasks. The UR3e operates under various mounting orientations and is equipped with an intuitive Universal Robots e-Series control system, ensuring ease of use while meeting rigorous safety and performance standards.

What are the technology applications of UR3e?

UNIVERSAL UR3e is a versatile robot suitable for a wide range of industrial applications. Primary applications of UNIVERSAL UR3e: Assembly, Deburring, Dispensing, Machine Tending, Pick and place. But we recommend to consult with your robot supplier or the manufacturer.

UNIVERSAL UR3e applications programmed with ENCY Robot

Pick and place

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase UNIVERSAL UR3e or request a quote, please contact the manufacturer or an authorized local supplier.

Download UNIVERSAL UR3e digital twin

Start for free

Specifications

General

Type: Cobot
Brand: Universal
Model: UR3e
Axes: 6

Performance

Payload: 3 kg
Reach: 500 mm
Repeatability: 0.030 mm
Weight: 11 kg
Maximum speed: 1 m/s
Speed at rated payload: 1 m/s

Environment

IP rating: IP54
Mounting orientation: Any orientation
Cleanroom class: ISO 14644-1 Class 5 (Robot Arm), Control Box: Class 6

Integration

Controller: Universal Robots e-Series control system with PolyScope graphical user interface on 12-inch touchscreen
Power supply: 100-240 VAC, 47-440 Hz
Power consumption: 300 W
Tool flange: ISO 9409-1-50-4-M6 (bolted, 4 bolts, M6, torque 8 Nm)
Communication interfaces: MODBUS TCP, EtherNet/IP adapter, PROFINET, USB 2.0, USB 3.0
Safety functions: 17 sophisticated safety functions, PLd Category 3 in accordance with EN ISO 13849-1; in compliance with EN ISO 10218-1
Certifications: EN ISO 13849-1 PLd Cat.3, EN ISO 10218-1, CE
