UNIVERSAL UR5

Cobot UNIVERSAL UR5

Specifications

Type

Cobot

Brand

Universal

Model

UR5

Axes

6

Payload

5 kg

Reach

850 mm

Repeatability

0.100 mm

Weight

18 kg

Speed at rated payload

1 m/s

IP rating

IP54

Mounting orientation

Any orientation

Controller

CB3 (for UR5 CB3 series), PolyScope GUI 12-inch teach pendant; for UR5e: e-Series controller / e-series control box

Power supply

100-240 VAC, 50-60 Hz

Power consumption

200 W

Tool flange

ISO 9409-1-50-4-M6

Certifications

EN ISO 13849-1 (PLd Category 3), EN ISO 10218-1, CE

Cleanroom class

Robot Arm: ISO Class 5, Control Box: ISO Class 6

Safety functions

17 advanced safety functions per EN ISO 13849-1, PLd, and compliance with EN ISO 10218-1

Communication interfaces

MODBUS TCP, Ethernet/IP adapter, PROFINET, USB 2.0, USB 3.0, Tool communication RS

Download UNIVERSAL UR5 digital twin

Start for free
The Cobot UNIVERSAL UR5 is a versatile 6-axis robotic arm designed for industrial automation applications, capable of handling a payload of up to 5 kg with a reach of 850 mm. With a compact weight of 18 kg and a maximum speed of 1 m/s, this cobot ensures precise performance with a repeatability of 0.100 mm, making it ideal for tasks requiring high accuracy. The device features an IP54 rating for dust and water resistance, advanced safety functions compliant with EN ISO standards, and supports multiple communication interfaces, ensuring seamless integration into your automation processes.

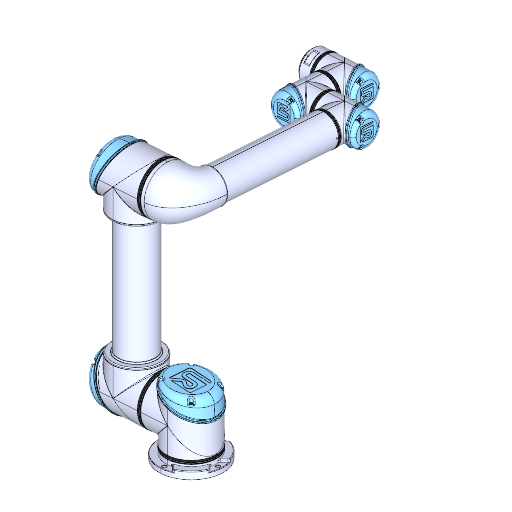

3D View

What are the technology applications of UR5?

UNIVERSAL UR5 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of UNIVERSAL UR5:Assembly, Dispensing, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplied or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

A sleek interface displays a robotic arm shaping a surfboard model.

UNIVERSAL UR5 applications programmed with ENCY Robot

A robotic arm performs a pick-and-place operation with an object.

Pick-and-Place

A robotic arm polishes a circular metal surface with precision.

Polishing

Frequently asked questions

Can UNIVERSAL UR5 be programmed with ENCY Robot?

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase UNIVERSAL UR5 or request a quote, please contact the manufacturer or an authorized local supplier.
