Efficient CNC-Machined Quick-Release Camera Mount

Shared by Lavorazioni Meccaniche CS

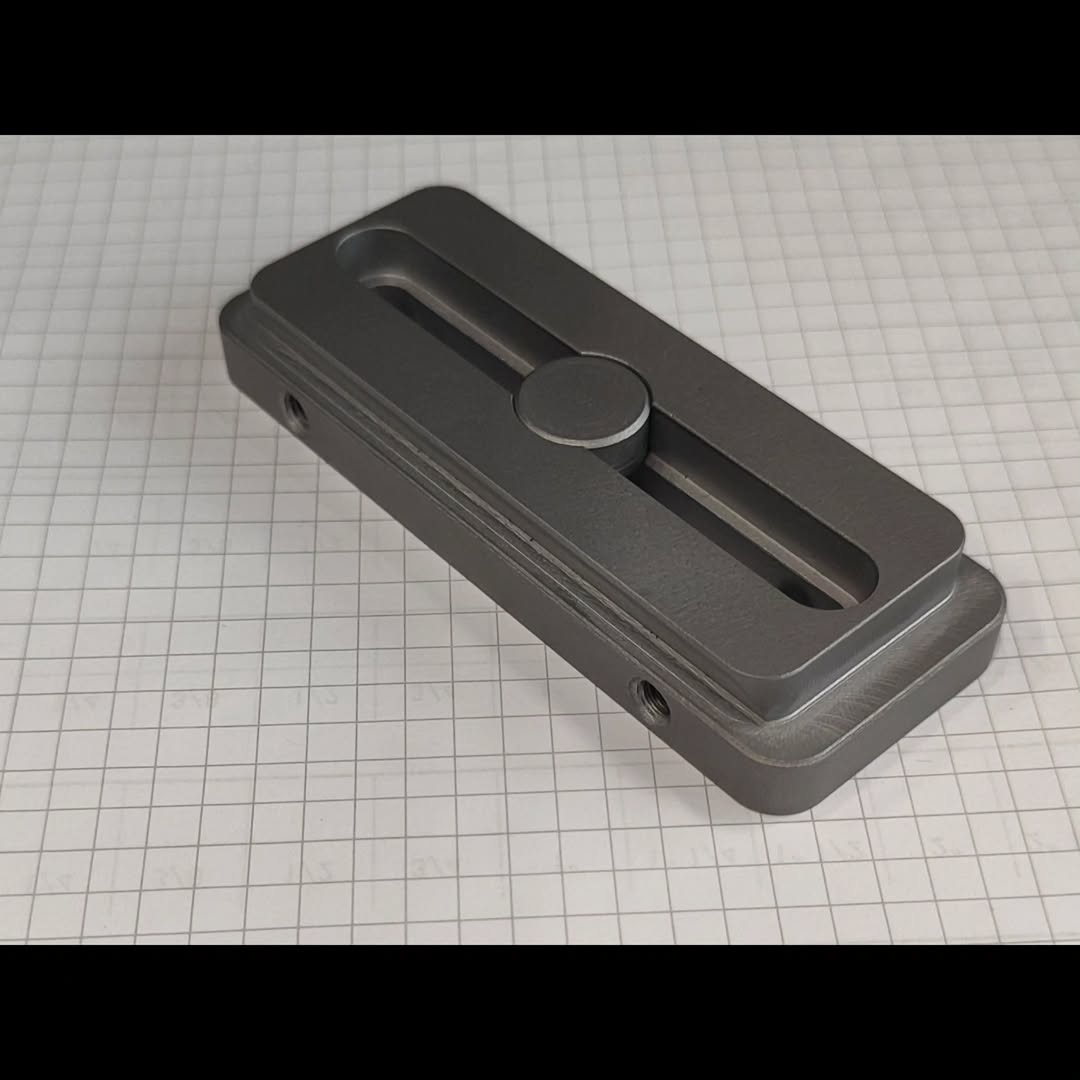

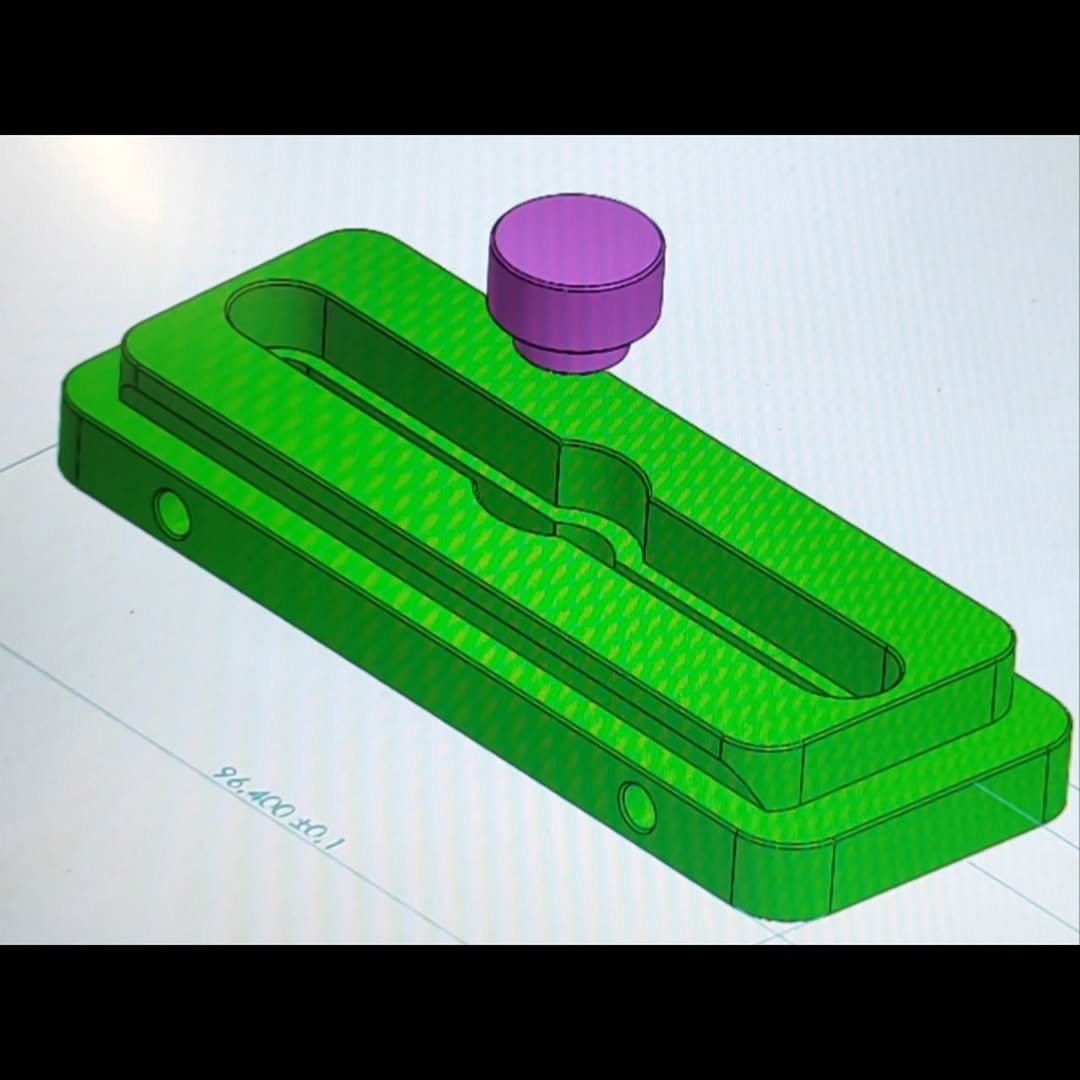

The post highlights the development of a custom quick-release camera mount, designed according to specific client requirements. As seen in the CAD/CAM simulations and finished part photos, the process involves advanced CNC milling of aluminum and plastic components, resulting in precise multi-layer bracket assemblies and housing fixtures.

Application in Industrial Settings
Visuals from the machining process illustrate 2.5x and 3x axis milling techniques, from digital toolpath generation to post-production manual inspection. These stages are representative of typical workflows in industrial machinery, automotive, electronics, and job shop environments, where accuracy and component fit are critical.

Software and Workflow Integration
ENCY CAD/CAM software has been used to plan and validate toolpaths, enabling seamless part programming and streamlined setup for complex assemblies. This integration supports efficient fixture design and detailed adjustment plate fabrication, resulting in consistently reliable outcomes.
