ABB IRB 1200 5/0.9

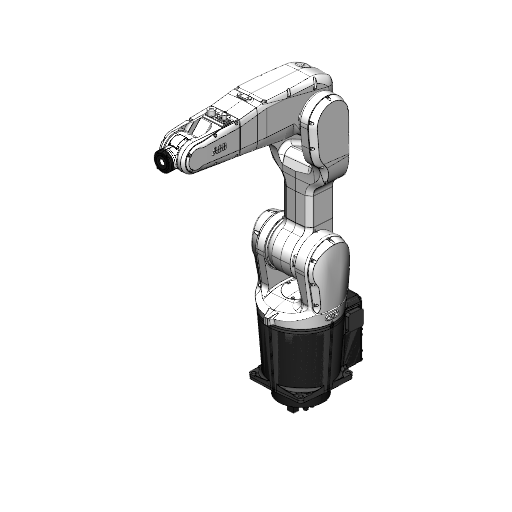

Industrial Robot ABB IRB 1200 5/0.9

Specifications

Type

Industrial Robot

Brand

ABB

Model

IRB 1200 5/0.9

Axes

6

Payload

5 kg

Reach

901 mm

Repeatability

0.020 mm

Weight

52 kg

Speed at rated payload

2500 mm/s

IP rating

IP40 standard; IP67 optional (with Clean Room / Food Grade Lubrication)

Mounting orientation

Any angle

Controller

IRC5 (also OmniCore C30, C90XT options)

Power supply

200-600 VAC, 3-phase, 50/60 Hz

Power consumption

0.39 kW

Tool flange

ISO 9409-1-31.5-4-M5

Certifications

CE, EN ISO 10218-1:2011

Cleanroom class

ISO Class 3 (optional with Food Grade Lubrication)

Safety functions

Safety certified EN ISO 10218-1:2011; Category 3, PL d; SafeMove / SafeMove2 optional

Communication interfaces

Ethernet routed wrist flange to foot; supports internal air ducts, customer signals; fieldbus options Profinet, Ethernet/IP, etc.

Download ABB IRB 1200 5/0.9 digital twin

Start for free
The Industrial Robot ABB IRB 1200 5/0.9 is a versatile six-axis robot designed for precision and efficiency in diverse automation applications. With a payload capacity of 5 kg and a reach of 901 mm, it offers a repeatability of 0.020 mm and a maximum speed of 2500 mm/s, making it ideal for high-speed tasks. This robust robot, weighing 52 kg, can be mounted at any angle and features an optional IP67 rating with Clean Room and Food Grade Lubrication for stringent environments, ensuring it meets industry standards for safety and reliability.
3D View

What are the technology applications of IRB 1200 5/0.9?

ABB IRB 1200 5/0.9 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of ABB IRB 1200 5/0.9:Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplied or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

A sleek interface displays a robotic arm shaping a surfboard model.

ABB IRB 1200 5/0.9 applications programmed with ENCY Robot

A robotic arm performs a pick-and-place operation with an object.

Pick-and-Place

A robotic arm polishes a circular metal surface with precision.

Polishing

Frequently asked questions

Can ABB IRB 1200 5/0.9 be programmed with ENCY Robot?

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase ABB IRB 1200 5/0.9 or request a quote, please contact the manufacturer or an authorized local supplier.
