ABB IRB 1200 7/0.7

Industrial Robot ABB IRB 1200 7/0.7

Specifications

Type

Industrial Robot

Brand

ABB

Model

IRB 1200 7/0.7

Axes

6

Payload

7 kg

Reach

703 mm

Repeatability

0.020 mm

Weight

54 kg

Speed at rated payload

10 m/s

IP rating

IP40 (standard), optional IP67

Operating temperature range

+5 to +45 °C

Mounting orientation

Any angle

Controller

IRC5 Compact / IRC5 Single-Cabinet (OmniCore family including E10, C30, C90XT, V250XT)

Power supply

200-600 V, 50/60 Hz

Power consumption

0.39 kW

Tool flange

ISO 9409-1-31.5-4-M5

Certifications

CE, EN ISO 10218-1:2011

Cleanroom class

ISO Class 3 (option)

Safety functions

SafeMove2 software providing safety certified monitoring of robot motion, tool and standstill supervision, speed limitation

Communication interfaces

100/10 Base-TX Ethernet, integrated customer signals and power on wrist, air supply on wrist

Download ABB IRB 1200 7/0.7 digital twin

Start for free

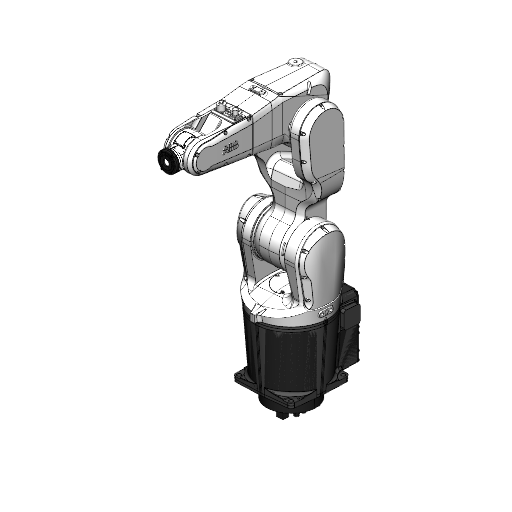

The ABB IRB 1200 7/0.7 is a versatile industrial robot featuring six axes, designed for precision automation tasks with a payload capacity of 7 kg and a reach of 703 mm. With a repeatability of just 0.020 mm and a maximum speed of 600 °/s, this robot excels in high-speed applications while operating within a temperature range of +5 to +45 °C. The model supports a variety of controller options, including the IRC5 Compact, and is equipped with advanced safety features such as SafeMove2 software, making it a reliable choice for diverse industrial environments.
3D View

What are the technology applications of IRB 1200 7/0.7?

ABB IRB 1200 7/0.7 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of ABB IRB 1200 7/0.7:Assembly, Dispensing, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplied or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

A sleek interface displays a robotic arm shaping a surfboard model.

ABB IRB 1200 7/0.7 applications programmed with ENCY Robot

A robotic arm performs a pick-and-place operation with an object.

Pick-and-Place

A robotic arm polishes a circular metal surface with precision.

Polishing

Frequently asked questions

Can ABB IRB 1200 7/0.7 be programmed with ENCY Robot?

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase ABB IRB 1200 7/0.7 or request a quote, please contact the manufacturer or an authorized local supplier.
