ABB IRB 1600 6/1.2

Industrial Robot ABB IRB 1600 6/1.2
Specifications
Type
Industrial Robot
Brand
ABB
Model
IRB 1600 6/1.2
Axes
6
Payload
6 kg
Reach
1200 mm
Repeatability
0.050 mm
Weight
250 kg
Maximum speed
0.58 kW
Speed at rated payload
0.58 kW
IP rating
Standard: IP 54; Option Foundry/Wash: IP 67
Operating temperature
Operational: +5 °C to +45 °C; Transport/Storage: ‐25 °C to +55 °C (short periods ≤24 h up to +70 °C)
Mounting orientation
Floor, wall, shelf, tilted, inverted
Controller
IRC5 (Single, Compact or Dual Cabinet) or OmniCore variants C30, C90XT, V250XT, V400XT depending on configuration
Power supply
200-600 V, 50/60 Hz
Power consumption
0.58 kW
Tool flange
ISO 9409-1-40-4-M6
Certifications
EN ISO 12100-1 & -2; EN 60204; ISO 10218; ANSI/RIA 15/1999 (optional); ANSI/UL 1740 (optional); CAN/CSA Z434 (optional); EMC standards EN 61000-6-2 and EN 61000-6-4
Cleanroom class
ISO Class 5
Safety functions
Emergency stop, protective stop, reduced speed (250 mm/s), enabling device on FlexPendant; two-channel safety circuit continuously monitored cutting power and engaging brakes upon failure
Communication interfaces
Standard fieldbus and industrial network interfaces via controller (e.g. Ethernet, PROFINET, EtherNet/IP, etc.) with supplementary software modules (Sensor Interface, RW Arc, RW Dispense, etc.)

The ABB IRB 1600 6/1.2 is a versatile industrial robot featuring 6 axes and a payload capacity of 6 kg, designed for precise handling and automation tasks. With a reach of 1200 mm and a repeatability of 0.050 mm, it ensures high accuracy in various applications, while its robust construction allows for an operating temperature range of +5 °C to +45 °C. Equipped with advanced safety functions and communication interfaces, this model is suitable for diverse mounting orientations and is compatible with the IRC5 controller, making it an ideal choice for modern industrial environments.

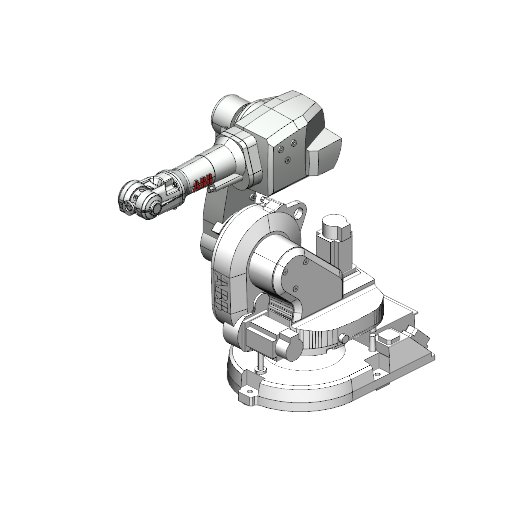

3D View

What are the technology applications of IRB 1600 6/1.2?

ABB IRB 1600 6/1.2 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of ABB IRB 1600 6/1.2: Deburring, Machine Tending, Pick and place, Polishing, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜
ENCY Robot interface

ABB IRB 1600 6/1.2 applications programmed with ENCY Robot

Pick and place

Pick and place

Polishing

Polishing

Robot welding

Robot welding

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.
Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.
Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.
If you would like to purchase ENCY, please contact us for a quote.
No. We do not sell robots and do not provide pricing information. To purchase ABB IRB 1600 6/1.2 or request a quote, please contact the manufacturer or an authorized local supplier.
