ABB IRB 2400/L

Heavy-Duty Industrial Robot ABB IRB 2400/L
Specifications
Type
Industrial Robot
Brand
ABB
Model
IRB 2400/L
Axes
7
Payload
7 kg
Reach
1800 mm
Repeatability
0.070 mm
Weight
380 kg
Maximum speed
1000 mm/s
Speed at rated payload
500 mm/s
IP rating
Manipulator IP54 standard (IP67 optional Foundry/F version, wrist & connectors IP67)
Operating temperature
5 to 45 °C
Mounting orientation
Floor or inverted mounting
Controller
IRC5 (also compatible with S4C / M2000 / M2004 variants)
Power supply
200-600 V AC, 50/60 Hz
Power consumption
670 W
Tool flange
Standard mounting flange on axis 6 end-effector (as delivered by ABB for IRB 2400/10, /16, /L variants)
Certifications
EN ISO 12100-1/-2, EN ISO 13849-1 (formerly EN 954-1), EN 60204-1, CE-marked, UL/UR option dependent
Cleanroom class
US Federal Standard 209 Class 100 (ISO 5)
Safety functions
Safe reduced speed (250 mm/s), Electronic Position Switches (EPS), Active/Passive safety systems, Hold-to-run enabling, Motors-off state, compliance with Machinery Directives/EN safety standards
Communication interfaces
RS-232, RS-422 (robot side connectors), industrial fieldbus/PLC interfaces via controller (varies with controller option)

The ABB IRB 2400/L is a heavy-duty industrial robot designed for high-performance automation tasks, featuring 7 axes and a payload capacity of 7 kg. With a reach of 1800 mm and a repeatability of 0.070 mm, this robust robot operates efficiently at maximum speeds of up to 1000 mm/s, making it suitable for various applications in demanding environments. Its flexibility in mounting orientation and compatibility with multiple controllers, including IRC5, ensure seamless integration into existing systems, while its safety features and cleanroom compatibility enhance operational reliability.

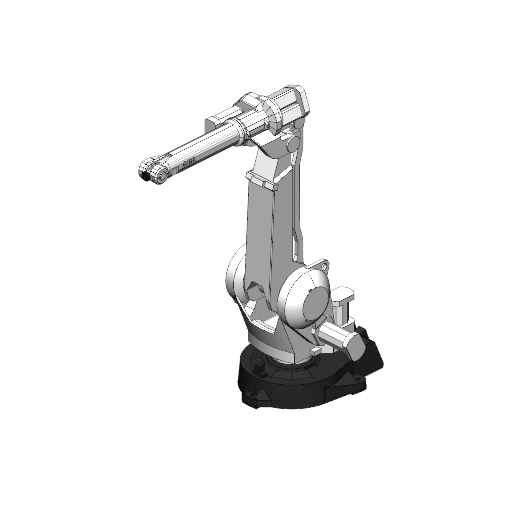

3D View

What are the technology applications of IRB 2400/L?

ABB IRB 2400/L is a versatile robot suitable for a wide range of industrial applications.

Primary applications of ABB IRB 2400/L: Assembly, Machine Tending, Pick and place, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜
ENCY Robot interface

ABB IRB 2400/L applications programmed with ENCY Robot

Pick and place

Pick and place

Robot welding

Robot welding

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.
Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.
Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.
If you would like to purchase ENCY, please contact us for a quote.
No. We do not sell robots and do not provide pricing information. To purchase ABB IRB 2400/L or request a quote, please contact the manufacturer or an authorized local supplier.
