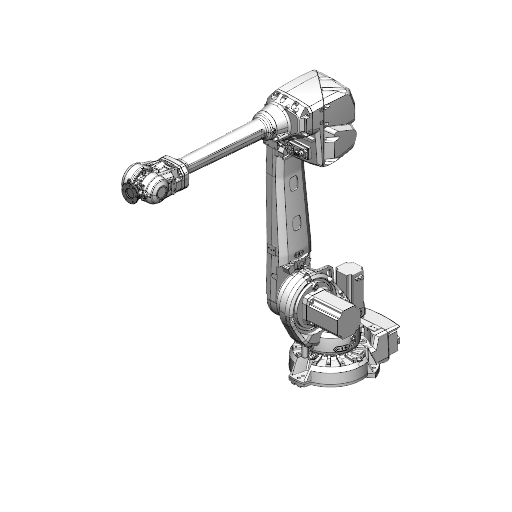

ABB IRB 4600 40/2.55

Industrial Robot

ABB6 axesDigital twin for ENCY Robot

About

The Industrial Robot ABB IRB 4600 40/2.55 is a highly versatile six-axis robotic solution designed for demanding industrial automation tasks. With a payload capacity of 40 kg and a reach of 2550 mm, this robot delivers exceptional accuracy and repeatability of 0.060 mm, making it suitable for precision applications across various environments. Its robust design includes IP67 protection and an operating temperature range of +5 to +45 °C, ensuring reliable performance in challenging conditions.

What are the technology applications of IRB 4600 40/2.55?

ABB IRB 4600 40/2.55 is a versatile robot suitable for a wide range of industrial applications. Primary applications of ABB IRB 4600 40/2.55: Deburring, Machine Tending, Pick and place, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.

ABB IRB 4600 40/2.55 applications programmed with ENCY Robot

Pick and place

Robot welding

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase ABB IRB 4600 40/2.55 or request a quote, please contact the manufacturer or an authorized local supplier.

Download ABB IRB 4600 40/2.55 digital twin

Start for free

Specifications

General

Type: Industrial Robot
Brand: ABB
Model: IRB 4600 40/2.55
Axes: 6

Performance

Payload: 40 kg
Reach: 2550 mm
Repeatability: 0.060 mm
Weight: 435 kg
Maximum speed: 1.6 m/s
Speed at rated payload: 0.28 m/s

Environment

IP rating: IP67 (standard protection plus optional Foundry Plus)
Operating temperature: +5 to +45 °C
Mounting orientation: Floor, shelf, tilted/semi-shelf or inverted/ceiling
Cleanroom class: ISO 14644-1 Class 5 (40 kg and 60 kg versions)

Integration

Controller: IRC5
Power supply: 200-600 V, 50-60 Hz
Power consumption: 1.62 kW
Tool flange: ISO 9409-1-40-4-M6
Communication interfaces: Field buses for I/O, sensor interfaces, Ethernet-based networking, remote disk access, socket messaging
Safety functions: Protective stop, emergency stop, interlocked safety circuits as per standards in ABB IRB 4600 product manual
Certifications: Cleanroom ISO 14644-1 Class 5 (for certain versions), IP67 protection, Foundry Plus optional protection
