ABB IRB 6640ID 170/2.75

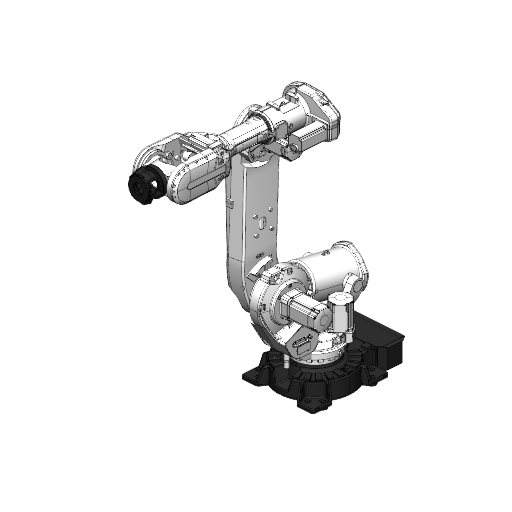

Industrial Robot ABB IRB 6640ID 170/2.75
Specifications
Type
Industrial Robot
Brand
ABB
Model
IRB 6640ID 170/2.75
Axes
6
Payload
170 kg
Reach
2750 mm
Repeatability
0.060 mm
Weight
1405 kg
Maximum speed
190 °/s
Speed at rated payload
190 °/s
IP rating
IP67
Operating temperature
+5 to +50 °C
Mounting orientation
Floor
Controller
IRC5
Power supply
200–600 V AC, 50/60 Hz
Power consumption
2700 W
Tool flange
11 bolt holes, bolt quality class 12.9; mating flange interface; for vertical wrist mounting respectively (vertical wrist down) bolt pattern standard to IRB 6640 series
Certifications
CE
Cleanroom class
ISO Class 5
Safety functions
Emergency stop; load identification; movable mechanical stops; electronic position switches (EPS)
Communication interfaces
Parallel I/O; Fieldbus (Profibus, CAN, DeviceNet, Ethernet options such as EtherNet/IP or PROFINET depending on configuration)

The Industrial Robot ABB IRB 6640ID 170/2.75 is a high-performance 6-axis robotic solution designed for demanding industrial applications. With a payload capacity of 170 kg and an impressive reach of 2750 mm, this robot achieves a repeatability of 0.060 mm and operates efficiently in a wide temperature range of +5 to +50 °C. Its robust design features an IP67 rating for dust and water protection, making it ideal for cleanroom environments (ISO Class 5), while the IRC5 controller and versatile communication interfaces ensure seamless integration into various automation systems.

3D View

What are the technology applications of IRB 6640ID 170/2.75?

ABB IRB 6640ID 170/2.75 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of ABB IRB 6640ID 170/2.75: Grinding, Machine Tending, Multiaxis cutting, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜
ENCY Robot interface

ABB IRB 6640ID 170/2.75 applications programmed with ENCY Robot

Multiaxis cutting

Multiaxis cutting

Robot milling

Robot milling

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.
Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.
Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.
If you would like to purchase ENCY, please contact us for a quote.
No. We do not sell robots and do not provide pricing information. To purchase ABB IRB 6640ID 170/2.75 or request a quote, please contact the manufacturer or an authorized local supplier.
