ABB IRB 6760-150/3.5 MH3

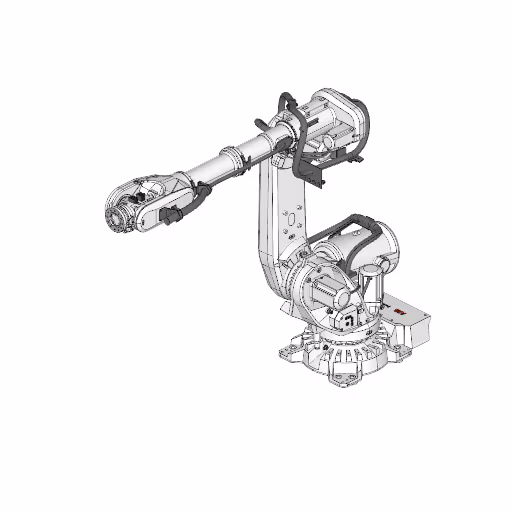

Industrial Robot ABB IRB 6760-150/3.5 MH3

Specifications

Type

Industrial Robot

Brand

ABB

Model

IRB 6760-150/3.5 MH3

Axes

6

Payload

150 kg

Reach

3500 mm

Repeatability

0.08 mm

Weight

1480 kg

IP rating

IP67; Option: Foundry Plus

Operating temperature range

During operation +5 °C to +50 °C; in high-speed press tending +5 °C to +35 °C; transportation and storage −25 °C to +55 °C; short storage up to +70 °C (max 24 h)

Mounting orientation

Floor

Controller

OmniCore V250XT/V400XT

Power supply

380-480 VAC, 50/60 Hz

Power consumption

3.2-3.4 kW

Certifications

Emission EMC/EMI-shielded

Safety functions

Double circuits with supervision, emergency stops and safety functions, 3-position enable device; Extended safety: SafeMove

Download ABB IRB 6760-150/3.5 MH3 digital twin

Start for free
The Industrial Robot ABB IRB 6760-150/3.5 MH3 is a high-performance automation solution with six axes, designed to handle a payload of up to 150 kg and a reach of 3500 mm. This robust robot boasts a repeatability of 0.08 mm and operates efficiently within a temperature range of +5 °C to +50 °C. Equipped with an OmniCore V250XT/V400XT controller, the IRB 6760 is suitable for demanding industrial environments, ensuring safety and reliability with its advanced safety functions and IP67 rating.
3D View

What are the technology applications of IRB 6760-150/3.5 MH3?

ABB IRB 6760-150/3.5 MH3 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of ABB IRB 6760-150/3.5 MH3:Deburring, Grinding, Multiaxis cutting, Robot milling, Trimming. But we recommend to consult with your robot supplied or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

A sleek interface displays a robotic arm shaping a surfboard model.

ABB IRB 6760-150/3.5 MH3 applications programmed with ENCY Robot

A robotic arm is preparing to cut a green-topped object.

Multiaxis cutting

A robotic arm is milling the surface of a boat hull.

Robot Milling

Frequently asked questions

Can ABB IRB 6760-150/3.5 MH3 be programmed with ENCY Robot?

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase ABB IRB 6760-150/3.5 MH3 or request a quote, please contact the manufacturer or an authorized local supplier.
