ABB IRB 7710-500/2.85

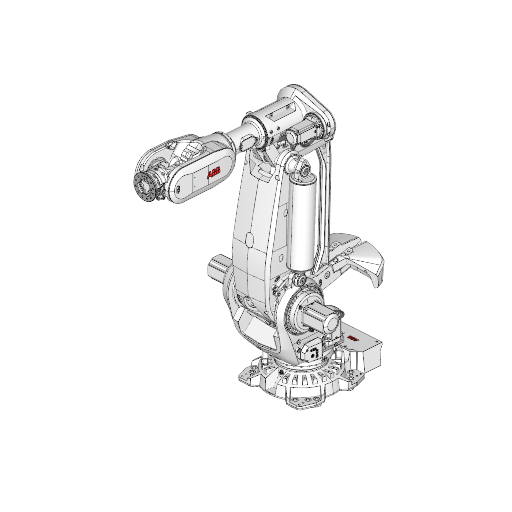

Industrial Robot ABB IRB 7710-500/2.85

Specifications

Type

Heavy-Duty Industrial Robot

Brand

ABB

Model

IRB 7710-500/2.85

Axes

7

Payload

500 kg

Reach

2850 mm

Repeatability

0.06 mm

Weight

2130 kg

Speed at rated payload

1600 mm/s

IP rating

IP67 (with optional Foundry Plus protection)

Operating temperature range

+5 to +50 °C

Mounting orientation

Floor

Controller

OmniCore V400XT

Power supply

380-480 VAC, 50/60 Hz

Power consumption

2.7 ----------------------------kW (typical ISO-cube, max performance)

Safety functions

Double circuits with supervision, emergency stops and safety functions, 3-position enable device, extended safety SafeMove2

Download ABB IRB 7710-500/2.85 digital twin

Start for free
The Industrial Robot ABB IRB 7710-500/2.85 is a high-performance automation solution designed for demanding industrial applications. With seven axes, a payload capacity of 500 kg, and an impressive reach of 2850 mm, it offers exceptional flexibility and precision, featuring a repeatability of just 0.06 mm. This robust robot operates effectively within an ambient temperature range of +5 to +50 °C, and is ideal for floor mounting, supported by the advanced OmniCore V400XT controller and comprehensive safety functions for enhanced operational safety.
3D View

What are the technology applications of IRB 7710-500/2.85?

ABB IRB 7710-500/2.85 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of ABB IRB 7710-500/2.85:Deburring, Grinding, Multiaxis cutting, Robot milling, Trimming. But we recommend to consult with your robot supplied or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

A sleek interface displays a robotic arm shaping a surfboard model.

ABB IRB 7710-500/2.85 applications programmed with ENCY Robot

A robotic arm is preparing to cut a green-topped object.

Multiaxis cutting

A robotic arm is milling the surface of a boat hull.

Robot Milling

Frequently asked questions

Can ABB IRB 7710-500/2.85 be programmed with ENCY Robot?

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase ABB IRB 7710-500/2.85 or request a quote, please contact the manufacturer or an authorized local supplier.
