ABB IRB 8700-800/3.50 SW6

Specifications

Type

Heavy-Duty Industrial Robot

Brand

ABB

Model

IRB 8700-800/3.50 SW6

Axes

Payload

800 kg

Reach

3500 mm

Repeatability

0.05 mm

Weight

4525 kg

Speed at rated payload

115 °/s (axis dependent)

IP rating

IP67

Operating temperature range

During operation +5 to +50 °C; During transport & storage −25 to +55 °C (short periods up to +70 °C, max 24h)

Mounting orientation

Floor mounted

Controller

IRC5 (single cabinet)

Power supply

200-600 V, 50/60 Hz

Power consumption

3.93 kW

Certifications

EMC/EMI-shielded; compliance with RoHS 2002/95/EC and REACH (No1907/2006); Foundry Plus 2 protection standard

Safety functions

Double circuits with supervision, emergency stops and safety functions, 3-position enable device; Extended safety SafeMove2

Download ABB IRB 8700-800/3.50 SW6 digital twin

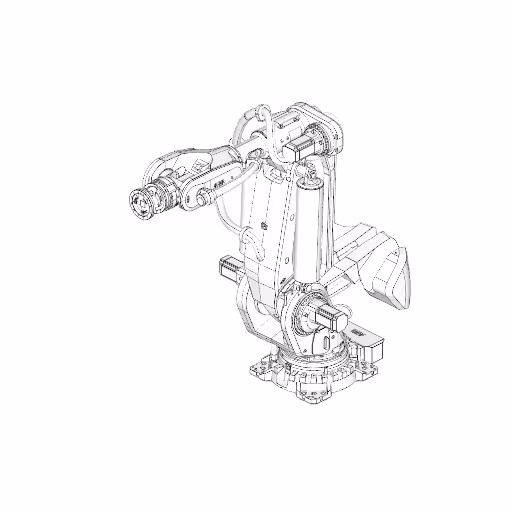

The Industrial Robot ABB IRB 8700-800/3.50 SW6 is a highly advanced robotic solution designed for heavy-duty applications, featuring seven axes and a remarkable payload capacity of 800 kg. With a reach of 3500 mm and exceptional repeatability of 0.05 mm, this robot operates efficiently even in demanding environments, supported by a robust IP67 rating and a temperature range of +5 to +50 °C during operation. The robot is powered by the IRC5 controller, ensuring optimal performance and safety with advanced features like SafeMove2 and double circuit supervision.

What are the technology applications of IRB 8700-800/3.50 SW6?

ABB IRB 8700-800/3.50 SW6 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of ABB IRB 8700-800/3.50 SW6:Machine Tending, Multiaxis cutting, Polishing, Robot milling, Robot welding. But we recommend to consult with your robot supplied or the manufacturer.
