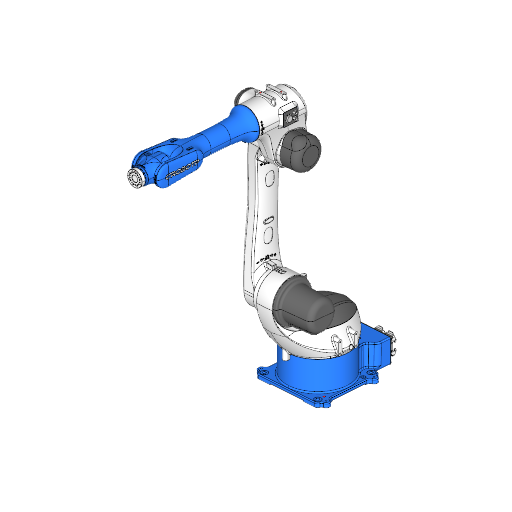

CRP RA18-25

Specifications

Type

Industrial Robot

Brand

CRP

Model

RA18-25

Axes

Payload

25 kg

Reach

1835.6 mm

Repeatability

0.05 mm

Weight

250 kg

IP rating

Body IP54, Wrist IP67

Mounting orientation

Floor, Ceiling (upside-down), Wall

Controller

G4 control cabinet (integrated robot controller by CRP)

Power supply

3-phase 380 VAC / 50-60 Hz

Safety functions

Independent emergency stop board; dual-circuit emergency stop; collision detection; gravity compensation

Communication interfaces

Digital I/O (≈22 inputs/outputs), Ethernet, USB, encoder feedback, reserved arc welding & station & remote upper interfaces

Download CRP RA18-25 digital twin

The Industrial Robot CRP RA18-25 is a high-performance automation solution featuring six axes and a payload capacity of 25 kg, making it ideal for various applications in manufacturing and assembly. With a reach of 1835.6 mm and a repeatability of 0.05 mm, this robust robot is designed for precision and efficiency. The CRP RA18-25 operates with a maximum speed of 540 °/s on Joint 6 and offers flexible mounting options, while its IP54 and IP67 ratings ensure durability in diverse environments.

What are the technology applications of RA18-25?

CRP RA18-25 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of CRP RA18-25:Deburring, Grinding, Multiaxis cutting, Polishing, Robot milling. But we recommend to consult with your robot supplied or the manufacturer.
