Cobot DOBOT CR12A Specs and Applications

Specifications

Type

Cobot

Brand

Dobot

Model

CR12A

Axes

Payload

12 kg

Reach

1200 mm

Repeatability

0.03 mm

Weight

39.5 kg

Maximum speed

2 m/s

Speed at rated payload

2 m/s

IP rating

IP54

Mounting orientation

Any Angle

Controller

CC262 (PLd Cat.3 safety controller)

Power supply

100-240V AC, 47-63Hz

Power consumption

350 W

Tool flange

ISO 9409-1 compliant aerospace style flange on end-effector with 24 V output, tool DI/DO, AI/RS485 channels

Certifications

ISO 13849-1, ISO 10218-1, ISO/TS 15066

Safety functions

20+ safety functions, PLd Cat.3 safety controller, electromagnetic brake (engages <18 ms), ISO 13849-1, ISO 10218-1, ISO/TS 15066

Communication interfaces

TCP/IP, Modbus TCP, Ethernet/IP, PROFINET, RS485, Wi-Fi

The Cobot DOBOT CR12A is a versatile six-axis industrial robot designed for enhanced automation in various applications. With a 12 kg payload capacity and a reach of 1200 mm, it delivers high performance and precision, featuring a repeatability of 0.03 mm. This IP54-rated robot is designed for any mounting orientation and utilizes the CC262 safety controller, ensuring over 20 safety functions for robust operational reliability.

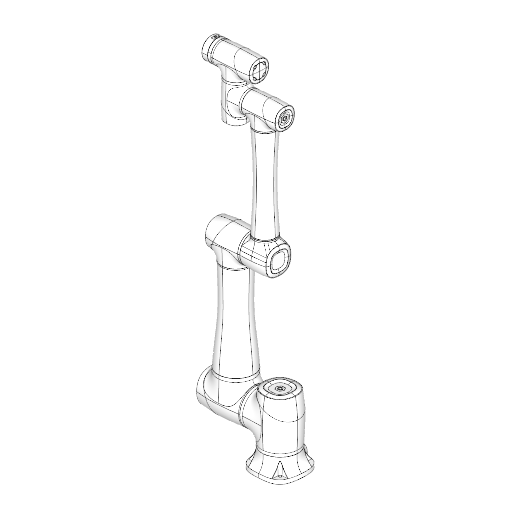

3D View

What are the technology applications of CR12A?

DOBOT CR12A is a versatile robot suitable for a wide range of industrial applications.

Primary applications of DOBOT CR12A: Assembly, Dispensing, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.
