Cobot DOBOT CR3 Specs and Applications

Specifications

Type

Cobot

Brand

Dobot

Model

CR3

Axes

Payload

3 kg

Reach

620 mm

Repeatability

0.020 mm

Weight

17 kg

Maximum speed

2 m/s

Speed at rated payload

2 m/s

IP rating

IP54 (robot body), control box IP20 (IP66 optional upon choice)

Mounting orientation

Any angle / all directions

Controller

DOBOT CC162 (DT-CR-6R162-00I)

Power supply

DC 48V

Power consumption

120 W

Certifications

ISO 13849, TS 15066

Cleanroom class

ISO Class 5 (Class 100) / SEMI S2/S8 compatible

Safety functions

22 built-in safety features; supports ISO 13849 and TS 15066; collision detection with 5 adjustable levels; optional SafeSkin pre-collision sensing

Communication interfaces

TCP/IP, Modbus, RS485, Wi-Fi

The Cobot DOBOT CR3 is a versatile 6-axis collaborative robot designed for precision tasks in industrial automation. With a payload capacity of 3 kg and a reach of 620 mm, it offers remarkable repeatability of 0.020 mm and operates at a maximum speed of 2 m/s. Featuring an IP54-rated body and a powerful DOBOT CC162 controller, this lightweight 17 kg robot is compatible with ISO Class 5 cleanroom standards, making it ideal for a variety of demanding applications.

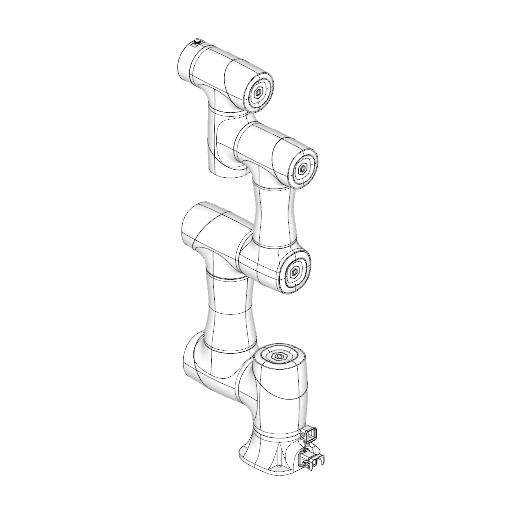

3D View

What are the technology applications of CR3?

DOBOT CR3 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of DOBOT CR3: Assembly, Deburring, Dispensing, Machine Tending, Pick and place. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

DOBOT CR3 applications programmed with ENCY Robot

Pick and place

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase DOBOT CR3 or request a quote, please contact the manufacturer or an authorized local supplier.

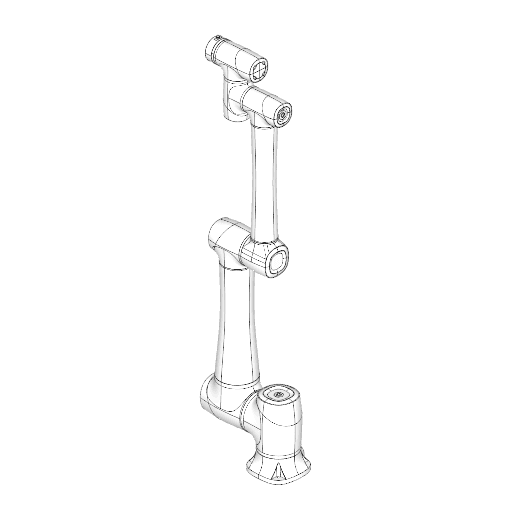

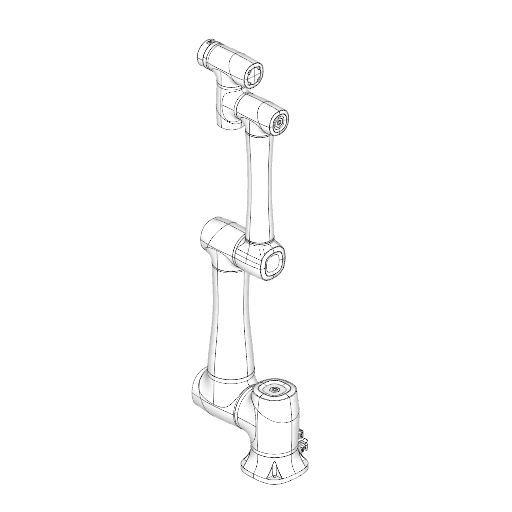

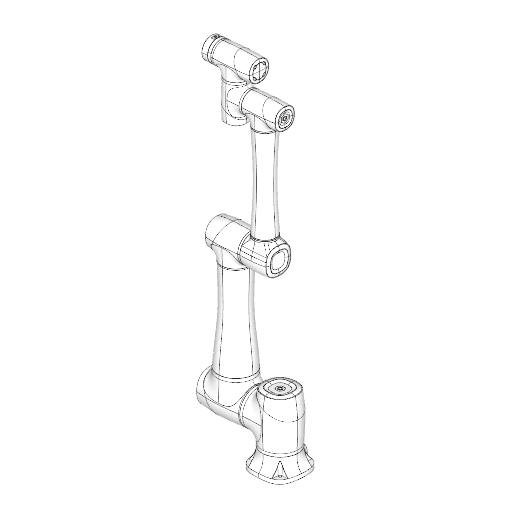

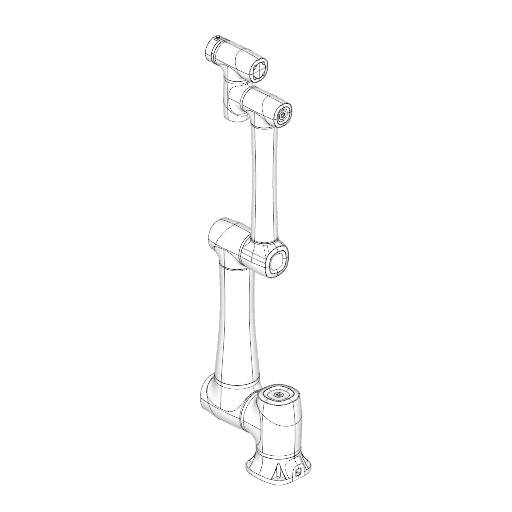

Other Cobot by Dobot
