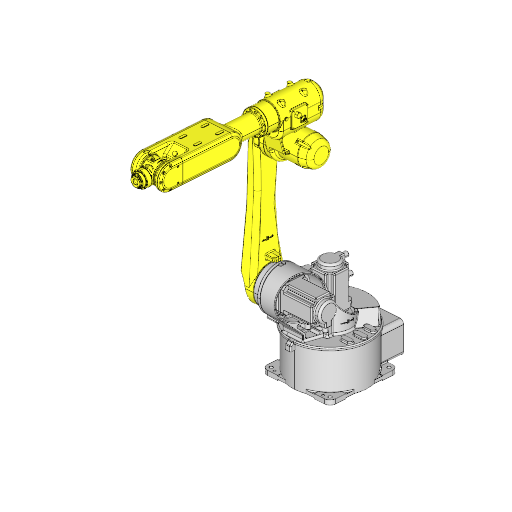

EFORT ER10-1600

Specifications

Type

Industrial Robot

Brand

Efort

Model

ER10-1600

Axes

Payload

10 kg

Reach

1640 mm

Repeatability

0.05 mm

Weight

185 kg

IP rating

IP65 for body, wrist IP67, control cabinet IP54

Mounting orientation

Floor, Wall, Ceiling (any orientation)

Controller

EC-M6 controller

Power consumption

3000 W

Certifications

ISO, CE

Communication interfaces

Ethernet / TCP-IP / IO (local and remote)

Download EFORT ER10-1600 digital twin

The Industrial Robot EFORT ER10-1600 is a high-performance automation solution equipped with six axes and a payload capacity of 10 kg. With a reach of 1640 mm and a repeatability of 0.05 mm, this robot is designed for precision tasks across various applications. It features durable IP-rated protection for its body (IP65), wrist (IP67), and control cabinet (IP54), enabling versatile mounting options on the floor, wall, or ceiling while powered by the EC-M6 controller with a power consumption of 3000 W.

What are the technology applications of ER10-1600?

EFORT ER10-1600 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of EFORT ER10-1600:Deburring, Machine Tending, Pick and place, Polishing, Trimming. But we recommend to consult with your robot supplied or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

EFORT ER10-1600 applications programmed with ENCY Robot

Pick-and-Place

Polishing

Frequently asked questions

Can EFORT ER10-1600 be programmed with ENCY Robot?

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

How can I start programming EFORT ER10-1600 with ENCY Robot?

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

It is possible to install a free version of ENCY Robot and start programming EFORT ER10-1600 with it?

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

How to buy ENCY Robot?

If you would like to purchase ENCY, please contact us for a quote.

Can I purchase EFORT ER10-1600 and get its price from your company?

No. We do not sell robots and do not provide pricing information. To purchase EFORT ER10-1600 or request a quote, please contact the manufacturer or an authorized local supplier.
