EPSON C4-A601S

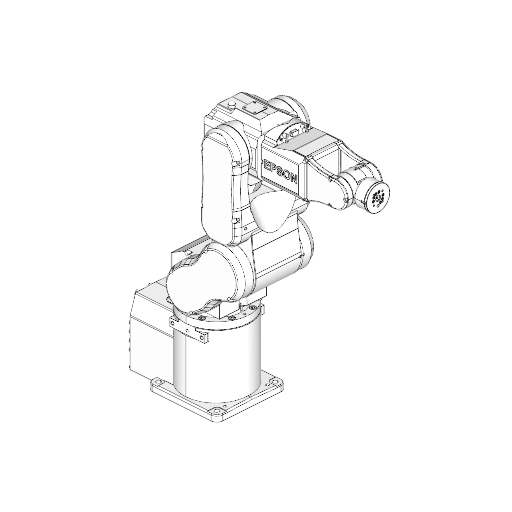

Industrial Robot EPSON C4-A601S

Specifications

Type

Industrial Robot

Brand

Epson

Model

C4-A601S

Axes

6

Payload

4 kg

Reach

900 mm

Repeatability

0.02 mm

Weight

27 kg

Speed at rated payload

514 deg/s

IP rating

IP20

Operating temperature range

5 °C to 40 °C

Mounting orientation

Tabletop, Ceiling

Controller

RC700A

Power supply

200-240 VAC, single phase, 50/60 Hz

Power consumption

1.7 kVA

Tool flange

Ø60 h7 mounting interface

Certifications

CE Mark; ANSI/RIA R15.06-1999; UL1740; Machinery Directive EN ISO 12100-1 & -2; EN ISO 10218; EMC Directive; RoHS; REACH

Cleanroom class

ISO 3

Safety functions

Emergency stop switch; Safeguard circuits; Motor overload detection; Positioning overflow detection; Speed overflow detection; Motor driver overheat detection; Over-voltage detection; Irregular motor torque detection; Fan error detection

Communication interfaces

Standard electric 9-pin D-Sub; Pneumatic ∅4 mm × 4; Fieldbus options: DeviceNet, EtherNet/IP, Profibus, CC-Link

Download EPSON C4-A601S digital twin

Start for free
The EPSON C4-A601S is a high-performance industrial robot designed for precision automation tasks. Featuring six axes, a payload capacity of 4 kg, and a reach of 900 mm, this robot achieves exceptional repeatability of 0.02 mm, making it ideal for applications requiring accuracy. With a maximum speed of 720 degrees per second and robust safety features, the EPSON C4-A601S is suitable for various mounting orientations and operates efficiently within a temperature range of 5 °C to 40 °C, all while meeting stringent industry standards.
3D View

What are the technology applications of C4-A601S?

EPSON C4-A601S is a versatile robot suitable for a wide range of industrial applications.

Primary applications of EPSON C4-A601S:Assembly, Dispensing, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplied or the manufacturer.
