Industrial Robot EVS QJRP10-1 Specs and Applications

Specifications

Type

Industrial Robot

Brand

EVS

Model

QJRP10-1

Axes

Payload

10 kg

Reach

2035 mm

Repeatability

0.5 mm

Weight

370 kg

Maximum speed

361 °/s

Speed at rated payload

361 °/s

IP rating

IP65

Mounting orientation

Ground Mounted (installing form: ground)

Power supply

Three-phase four-wire

Power consumption

3.9 kVA

Certifications

Explosion-proof certified; ATEX certified

Safety functions

Explosion-proof (optional positive-pressure explosion-proof system)

Communication interfaces

Modbus TCP

The Industrial Robot EVS QJRP10-1 is a versatile six-axis robotic solution designed for demanding automation tasks, with a payload capacity of 10 kg and a reach of 2035 mm. It features an impressive repeatability of 0.5 mm and operates at a maximum speed of 361 °/s, making it ideal for high-precision applications. With an IP65 rating, ground mounting capability, and optional explosion-proof safety functions, this robot is well-suited for industrial environments requiring robust performance and safety compliance.

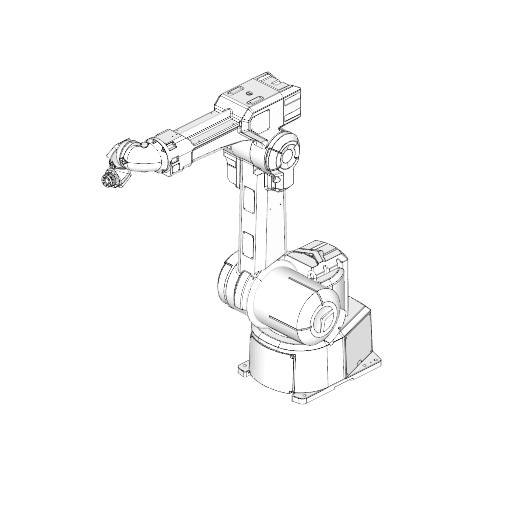

3D View

What are the technology applications of QJRP10-1?

EVS QJRP10-1 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of EVS QJRP10-1: Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

EVS QJRP10-1 applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot milling

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase EVS QJRP10-1 or request a quote, please contact the manufacturer or an authorized local supplier.
