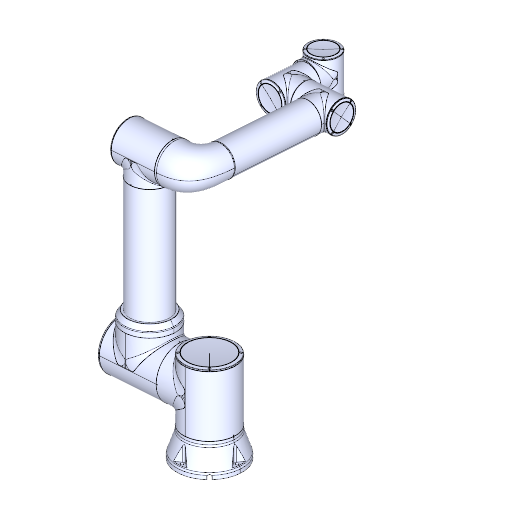

FAIRINO FR16-V6.0

Cobot

FAIRINO6 axesDigital twin for ENCY Robot

About

The Cobot FAIRINO FR16-V6.0 is a versatile 6-axis collaborative robot designed for industrial automation, featuring a payload capacity of 16 kg and a reach of 1034 mm. With a repeatability of 0.03 mm and an operational speed of up to 1.5 m/s, this robot offers exceptional precision and efficiency in various applications. The IP54 rating ensures reliable performance in diverse environments, while the extensive safety functions and multiple communication interfaces make it an ideal choice for collaborative workflows.

What are the technology applications of FR16-V6.0?

FAIRINO FR16-V6.0 is a versatile robot suitable for a wide range of industrial applications. Primary applications of FAIRINO FR16-V6.0: Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

FAIRINO FR16-V6.0 applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot milling

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase FAIRINO FR16-V6.0 or request a quote, please contact the manufacturer or an authorized local supplier.

Download FAIRINO FR16-V6.0 digital twin

Start for free

Specifications

General

Type: Cobot
Brand: FAIRINO
Model: FR16-V6.0
Axes: 6

Performance

Payload: 16 kg
Reach: 1034 mm
Repeatability: 0.03 mm
Weight: 40 kg
Maximum speed: 1.5 m/s
Speed at rated payload: 1 m/s

Environment

IP rating: IP54 (IP65 optional)
Mounting orientation: Any orientation

Integration

Controller: Mini control box 2kW / 6kW variants (central electronics), plus 10.1-inch teach pendant or web app
Power supply: 24 V for peripherals; main robot electronics unspecified AC input
Power consumption: 600 W
Tool flange: 4 × M6 threaded holes per robot tool flange
Communication interfaces: TCP/IP, Modbus TCP/RTU; optional: Profinet, EtherCAT, Ethernet/IP, CC-Link
Safety functions: Emergency Stop, Enabling switch, Collaborative-grade safety monitoring
Certifications: CE-EMC, CE-MD, Explosion-proof option, Functional Safety Certificate, ISO9001, ISO14001, ISO45001
