Industrial Robot FANUC M-900iB-700 Specs and Applications

Heavy-Duty Industrial Robot FANUC M-900iB-700

Specifications

Type

Industrial Robot

Brand

Fanuc

Model

M-900iB-700

Axes

Payload

700 kg

Reach

2832 mm

Repeatability

0.300 mm

Weight

2800 kg

Maximum speed

160 °/s (joint 6)

Speed at rated payload

80 °/s (J1, J2, J3 axes)

IP rating

Body IP54/IP56 standard, Wrist & J3 arm IP67

Mounting orientation

Floor, Upside-down, Angle

Controller

R-30iB / R-30iB Plus (A-, B-cabinet variants)

Power supply

380-575V AC, 3-phase, 50/60Hz

Power consumption

5 kW

Tool flange

Standard wrist flange; coupling via bolt‐on flange with positioning pins (depth 12 mm; 250 equally spaced features) [interface details per wrist flange standard]

Certifications

ISO 10218-1, IEC/EN standards via safety PL / SIL (Category 3 / 4, PL d-e, SIL 2-3), CE

Safety functions

Dual-Check Safety (DCS), Safe I/O via DeviceNet Safety, PROFINET Safety, EtherNet/IP Safety, Safe-I/O Connect

Communication interfaces

Ethernet/IP, PROFINET, EtherCAT, DeviceNet, CC-Link, FL-net, OPC UA, standard & safety variants

The FANUC M-900iB-700 is a heavy-duty industrial robot designed for high-performance applications, featuring seven axes with a payload capacity of 700 kg and a reach of 2832 mm. This robust model operates with an impressive repeatability of 0.300 mm and a maximum speed of 160 °/s, making it ideal for precision tasks. Its versatile mounting options, combined with multiple safety certifications and communication interfaces, ensure seamless integration into various industrial automation environments.

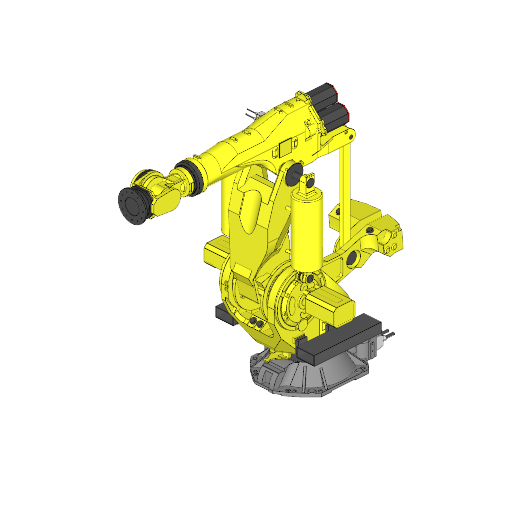

3D View

What are the technology applications of M-900iB-700?

FANUC M-900iB-700 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of FANUC M-900iB-700: Assembly, Machine Tending, Multiaxis cutting, Pick and place, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.
