FANUC R-2000iC-165F

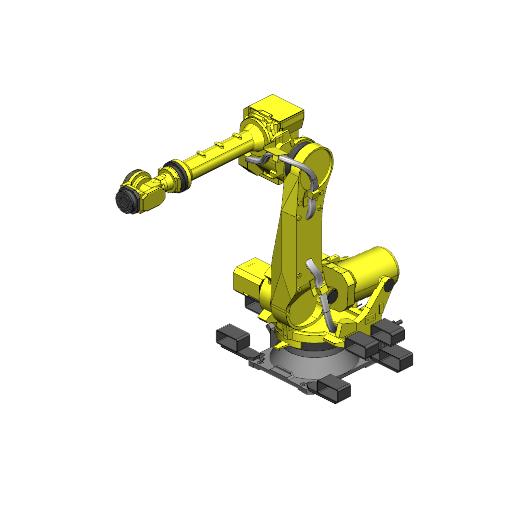

Industrial Robot FANUC R-2000iC-165F

Specifications

Type

Industrial Robot

Brand

Fanuc

Model

R-2000iC-165F

Axes

6

Payload

165 kg

Reach

2655 mm

Repeatability

0.200 mm

Weight

1170 kg

Speed at rated payload

260 °/s

IP rating

IP54 body standard / optional IP56; wrist & J3 arm standard/optional IP67

Mounting orientation

Floor (also upside down and angled positions available on request)

Controller

R-30iB Plus

Power supply

3-phase, 380-575 V, 50/60 Hz

Power consumption

2.5 kW

Tool flange

6-M12 tap depth 20 mm

Certifications

CE, ISO 9283 compliance for repeatability/motion parameters

Safety functions

Dual Check Safety (DCS), Collision Guard, Motion Package options

Communication interfaces

Ethernet/IP Adapter, Ethernet/IP Scanner, standard digital I/O (e.g. 8/8 upper arm I/O), optional Ethernet-based interfaces

Download FANUC R-2000iC-165F digital twin

Start for free
The FANUC R-2000iC-165F is a versatile industrial robot designed for high-performance automation tasks with its 6 axes and a payload capacity of 165 kg. Offering an impressive reach of 2655 mm and a repeatability of 0.200 mm, this robust robot features a maximum speed of 260 °/s and is equipped with the R-30iB Plus controller, ensuring efficient operation in various environments. With multiple mounting orientations, optional IP ratings, and advanced safety functions, the FANUC R-2000iC-165F is an ideal choice for demanding industrial applications.
3D View

What are the technology applications of R-2000iC-165F?

FANUC R-2000iC-165F is a versatile robot suitable for a wide range of industrial applications.

Primary applications of FANUC R-2000iC-165F:Assembly, Machine Tending, Pick and place, Robot welding, Trimming. But we recommend to consult with your robot supplied or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

A sleek interface displays a robotic arm shaping a surfboard model.

FANUC R-2000iC-165F applications programmed with ENCY Robot

A robotic arm performs a pick-and-place operation with an object.

Pick-and-Place

A robotic arm performs welding on a metal plate in a work environment.

Welding

Frequently asked questions

Can FANUC R-2000iC-165F be programmed with ENCY Robot?

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase FANUC R-2000iC-165F or request a quote, please contact the manufacturer or an authorized local supplier.
