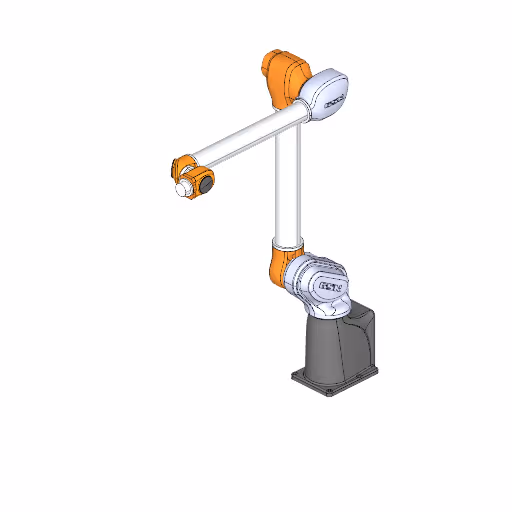

GSK RB06Q1-1630

Specifications

Type

Industrial Robot

Brand

GSK

Model

RB06Q1-1630

Axes

Payload

6 kg

Reach

1630 mm

Repeatability

0.05 mm

Weight

60 kg

Mounting orientation

Floor, Diagonal, Inverted, Wall

Controller

GSK-RC (built-in controller cabinet + teach pendant), ARM + DSP + FPGA based

Power supply

Three-phase 380 V AC, 50/60 Hz

Power consumption

2.6 kW

Certifications

ISO, CE

Safety functions

Mechanical collision sensor for torch; servo collision sensor; software position limits; mechanical hard stops (partial axes); protection at control cabinet

Communication interfaces

USB; Ethernet; Modbus TCP; DeviceNet; CAN; RS232; RS485

Download GSK RB06Q1-1630 digital twin

The Industrial Robot GSK RB06Q1-1630 is a versatile six-axis automation solution designed for a maximum payload of 6 kg and a reach of 1630 mm, providing high precision with a repeatability of 0.05 mm. Weighing 60 kg, it supports various mounting orientations, including floor, diagonal, inverted, and wall. Equipped with a built-in GSK-RC controller and a range of communication interfaces, including USB and Ethernet, this robot is an efficient and reliable choice for industrial applications, meeting ISO and CE certifications for safety and performance.

What are the technology applications of RB06Q1-1630?

GSK RB06Q1-1630 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of GSK RB06Q1-1630:Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplied or the manufacturer.
