Cobot HANS E10L-Pro Vision Specs and Applications

Specifications

Type

Cobot

Brand

Hans

Model

E10L-Pro Vision

Axes

Payload

8 kg

Reach

1300 mm

Repeatability

0.03 mm

Weight

45 kg

Maximum speed

2.5 m/s

Speed at rated payload

2.5 m/s

IP rating

IP66 (robot arm); IP20 (control box standard)

Mounting orientation

Any angle/tilt possible (floor, wall, ceiling)

Controller

Elfin-PRO Controller integrated, standard control box

Power supply

AC 200-240V, 50/60Hz

Power consumption

350 W

Safety functions

10 advanced security configuration functions

Communication interfaces

TCP/IP, ModbusTCP, Profinet (optional), Ethernet/IP (optional)

The Cobot HANS E10L-Pro Vision is a versatile 6-axis robotic arm designed for industrial automation applications, capable of handling a payload of up to 8 kg with a reach of 1300 mm. With a repeatability of 0.03 mm and a maximum speed of 2.5 m/s, this 45 kg cobot is ideal for precise tasks in diverse environments, thanks to its IP66-rated arm and flexible mounting options for any angle or tilt. Equipped with the integrated Elfin-PRO Controller and numerous safety functions, it supports various communication interfaces including TCP/IP and ModbusTCP, making it a reliable choice for efficient automation solutions.

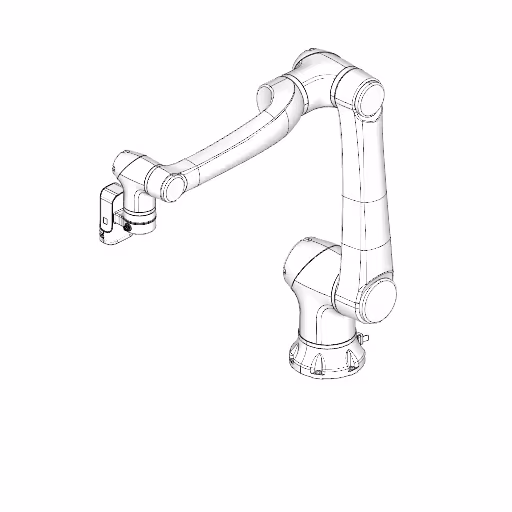

3D View

What are the technology applications of E10L-Pro Vision?

HANS E10L-Pro Vision is a versatile robot suitable for a wide range of industrial applications.

Primary applications of HANS E10L-Pro Vision: Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

HANS E10L-Pro Vision applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot milling

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase HANS E10L-Pro Vision or request a quote, please contact the manufacturer or an authorized local supplier.
