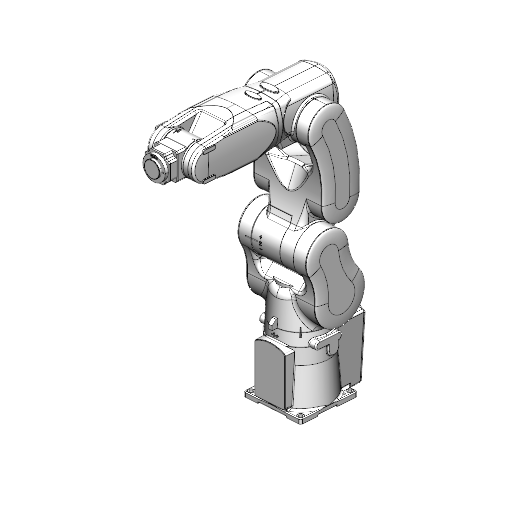

Industrial Robot HYUNDAI HH4 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Hyundai

Model

HH4

Axes

Payload

4 kg

Reach

581 mm

Repeatability

0.020 mm

Weight

22 kg

Maximum speed

550 °/s

Speed at rated payload

550 °/s

Mounting orientation

Floor, Wall, Ceiling

Controller

Hi5a-S00

Power consumption

4.4 kVA

Safety functions

Speed Limitation Function (ISO 10218), Operation Mode Selection, Working Envelope Restriction, Safety Stop Function

The Industrial Robot HYUNDAI HH4 is a highly versatile automation solution featuring six axes and a payload capacity of 4 kg. With a reach of 581 mm and impressive repeatability of 0.020 mm, this robot is designed for precision tasks at maximum speeds of 550 °/s. Weighing 22 kg, the HYUNDAI HH4 can be mounted in a variety of orientations, and it is equipped with the Hi5a-S00 controller, ensuring optimal performance and advanced safety functions such as speed limitation and safety stop features.

3D View

What are the technology applications of HH4?

HYUNDAI HH4 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of HYUNDAI HH4: Assembly, Deburring, Machine Tending, Pick and place, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

HYUNDAI HH4 applications programmed with ENCY Robot

Pick and place

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase HYUNDAI HH4 or request a quote, please contact the manufacturer or an authorized local supplier.
