JAKA C 12

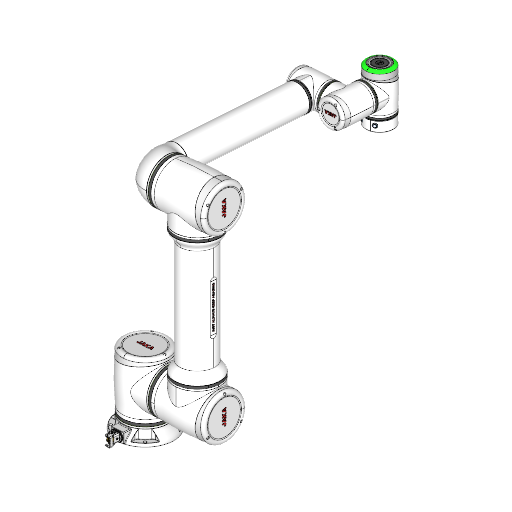

Cobot JAKA C 12

Specifications

Type

Cobot

Brand

Jaka

Model

C 12

Axes

6

Payload

12 kg

Reach

1327 mm

Repeatability

0.03 mm

Weight

41 kg

Speed at rated payload

3000 mm/s

IP rating

IP65

Operating temperature range

-10 to 50 °C

Mounting orientation

Any orientation

Controller

CAB-12 (control cabinet), programmed via graphical/free-drive plus JAKA App

Power supply

100-240 VAC, 50/60 Hz

Power consumption

500 W

Tool flange

Flange with TIO interface: 2 digital inputs, 2 digital outputs, 2 analog inputs, plus multiplexed RS-485; foolproof M8 style connector

Certifications

CE, CR, GB 11291.1-2011, ISO/IEC 15066

Cleanroom class

ISO 14644-1 Class 5

Safety functions

Collision detection via torque feedback; compliant with GB 11291.1-2011 for collaborative operation

Communication interfaces

TCP/IP, Modbus TCP, Modbus RTU, Profinet, Ethernet/IP

Download JAKA C 12 digital twin

Start for free
The Cobot JAKA C 12 is a highly advanced 6-axis collaborative robot designed to enhance efficiency in industrial automation. With a payload capacity of 12 kg and a reach of 1327 mm, it offers exceptional performance with a repeatability of 0.03 mm and maximum speed of 3000 mm/s. Built for versatility, it operates in any orientation and is rated IP65, making it suitable for cleanroom environments compliant with ISO 14644-1 Class 5, while ensuring safety through robust collision detection and a wide range of communication interfaces.
3D View

What are the technology applications of C 12?

JAKA C 12 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of JAKA C 12:Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplied or the manufacturer.
