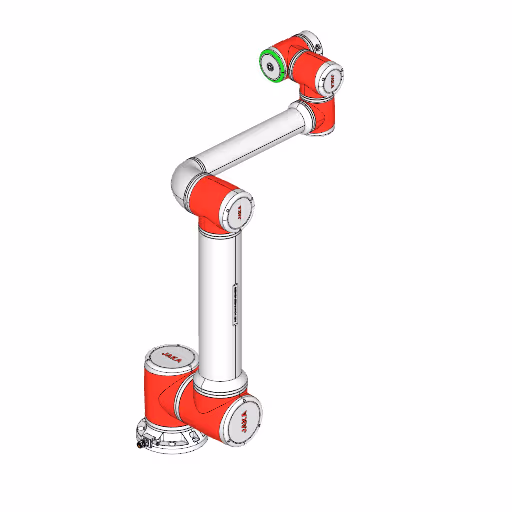

Cobot JAKA Pro 16 Specs and Applications

Specifications

Type

Cobot

Brand

Jaka

Model

Pro 16

Axes

Payload

16 kg

Reach

1713 mm

Repeatability

0.020 mm

Weight

73.9 kg

Maximum speed

3.9 m/s

Speed at rated payload

3.9 m/s

IP rating

IP68

Operating temperature

-10 to 50 °C

Mounting orientation

Any angle

Controller

MT (PAD/Mobile) APP

Power supply

100-240 VAC, 50/60 Hz

Power consumption

750 W

Tool flange

Certifications

CE; GB 11291.1-2011

Safety functions

Torque-feedback collision detection; safety interlock; compliant with GB 11291.1-2011

Communication interfaces

TCP/IP, Modbus TCP, Modbus RTU, Profinet, Ethernet/IP

The Cobot JAKA Pro 16 is a robust 6-axis industrial robot designed for versatile automation applications. With a payload capacity of 16 kg and a reach of 1713 mm, it offers impressive repeatability of 0.020 mm and a maximum speed of 3.9 m/s, making it ideal for precise handling tasks. The Cobot operates efficiently within an extensive temperature range of -10 to 50 °C, is rated IP68 for dust and water resistance, and features multiple communication interfaces, ensuring seamless integration into various industrial environments.

3D View

What are the technology applications of Pro 16?

JAKA Pro 16 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of JAKA Pro 16: Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.
