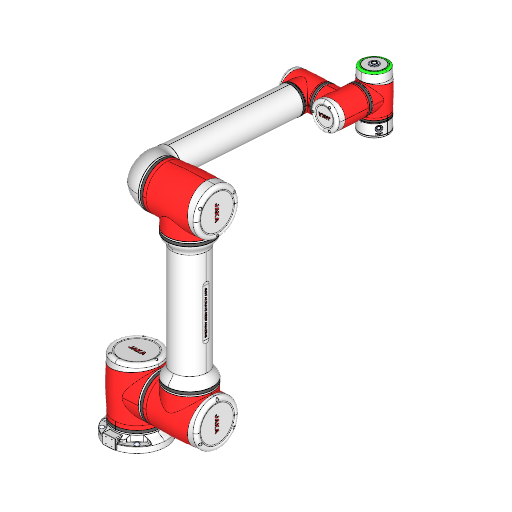

Cobot JAKA S 12 Specs and Applications

Specifications

Type

Cobot

Brand

Jaka

Model

S 12

Axes

Payload

12 kg

Reach

1327 mm

Repeatability

0.03 mm

Weight

41 kg

Maximum speed

3 m/s

Speed at rated payload

3 m/s

IP rating

IP65

Operating temperature

-10 to 50 °C

Mounting orientation

Any orientation

Power supply

100-240 VAC, 50-60 Hz

Power consumption

500 W

Certifications

CE, CR, ISO 15066

Communication interfaces

TCP/IP, Modbus TCP, Modbus RTU, Profinet, Ethernet/IP

The Cobot JAKA S 12 is a high-performance industrial automation component featuring six axes and a payload capacity of 12 kg, making it ideal for a wide range of applications. With an impressive reach of 1327 mm and a repeatability of 0.03 mm, this collaborative robot operates efficiently at speeds up to 3 m/s, even at rated payload. Designed to function in various environments, the JAKA S 12 boasts an IP65 rating, a wide operating temperature range of -10 to 50 °C, and multiple communication interfaces, ensuring seamless integration into your automation systems.

3D View

What are the technology applications of S 12?

JAKA S 12 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of JAKA S 12: Assembly, Dispensing, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

JAKA S 12 applications programmed with ENCY Robot

Pick and place

Polishing

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase JAKA S 12 or request a quote, please contact the manufacturer or an authorized local supplier.
