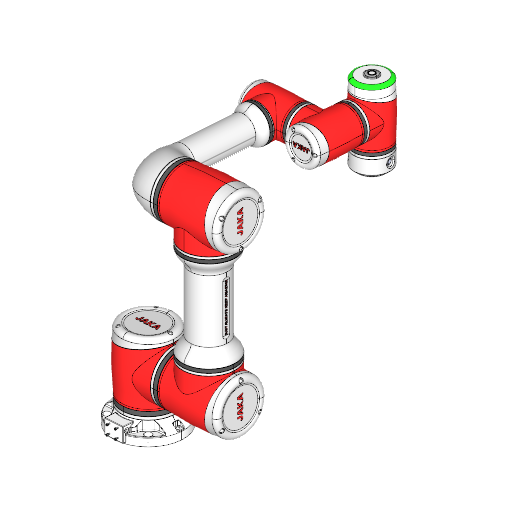

Cobot JAKA S 7 Specs and Applications

Specifications

Type

Cobot

Brand

Jaka

Model

S 7

Axes

Payload

7 kg

Reach

819 mm

Repeatability

0.02 mm

Weight

22 kg

Maximum speed

2.5 m/s

Speed at rated payload

2.5 m/s

IP rating

IP54 (arm), IP44 (control cabinet)

Mounting orientation

Any angle

Controller

Built-in controller with wireless teaching, graphical programming, mobile terminal/pad/phone app

Power supply

100-240 VAC, 50-60 Hz

Power consumption

350 W

Tool flange

M8 connector for tool I/O

Certifications

CE, CR, ISO 15066

Cleanroom class

Conform to ISO 14644-1:2015 / ISO 14644-14:2016 Class 5

Safety functions

Collaborative operation in compliance with GB 11291.1-2011

Communication interfaces

TCP/IP, Modbus TCP, Modbus RTU, Profinet, Ethernet/IP

The Cobot JAKA S 7 is a versatile 6-axis collaborative robot designed for industrial automation, offering a payload capacity of 7 kg and a reach of 819 mm. With a repeatability of 0.02 mm and a maximum speed of 2.5 m/s, this 22 kg robotic arm is suitable for various applications, even in cleanroom environments with ISO class 5 compliance. Featuring a built-in controller with wireless teaching capabilities and multiple communication interfaces, the JAKA S 7 is equipped for seamless integration and efficient operation within diverse manufacturing settings.

3D View

What are the technology applications of S 7?

JAKA S 7 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of JAKA S 7: Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

JAKA S 7 applications programmed with ENCY Robot

Pick and place

Polishing

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase JAKA S 7 or request a quote, please contact the manufacturer or an authorized local supplier.
