JAKA Zu 30

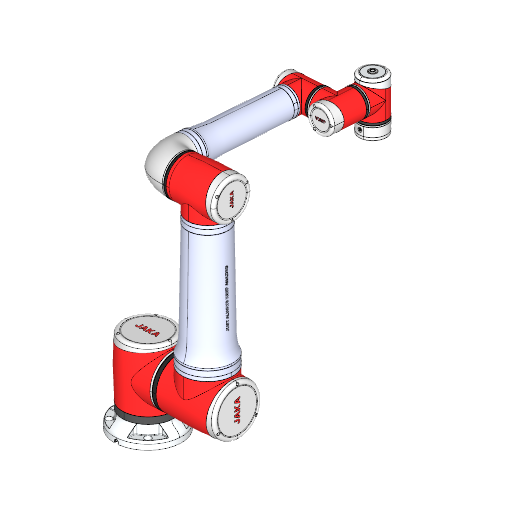

Cobot JAKA Zu 30

Specifications

Type

Cobot

Brand

Jaka

Model

Zu 30

Axes

6

Payload

30 kg

Reach

1350 mm

Repeatability

0.05 mm

Weight

65 kg

IP rating

IP65 (robot body), IP44 (base/interface of control cabinet)

Mounting orientation

Any direction (floor, wall, ceiling, inverted)

Power supply

100-240 VAC, 50/60 Hz

Power consumption

750 W

Tool flange

ISO 9409-1 mechanical interface; location pin center aligned; flange details per ISO 9787 offset 45° clockwise

Certifications

CE (Machinery Directive 2006/42/EC; Low Voltage Directive 2014/35/EU; EMC 2014/30/EU; RED 2014/53/EU), KCs safety standard, ISO 13849-1, SGS third-party safety certification

Cleanroom class

ISO 14644-1 Class 5

Safety functions

28 safety functions: emergency stop, safeguard stop, motion status, hand-guided mode, speed monitoring, torque & power limitations, collision protection, position monitoring; compliant with EN ISO 10218-1, ISO 13849-1 Category 3 / Performance Level d

Communication interfaces

TCP/IP, Modbus TCP, Modbus RTU, Profinet, Ethernet/IP

Download JAKA Zu 30 digital twin

Start for free
The Cobot JAKA Zu 30 is a versatile six-axis collaborative robot designed for industrial automation applications with a payload capacity of 30 kg and a reach of 1350 mm. With a remarkable repeatability of 0.05 mm and a maximum speed of 1000 mm/s, this robotic arm operates efficiently in various mounting orientations, including floor, wall, and ceiling configurations. Its robust design meets IP65 and IP44 ratings, ensuring reliability in cleanroom environments classified as ISO 14644-1 Class 5, while integrated safety functions and multiple communication interfaces provide seamless operation and compliance with international safety standards.
3D View

What are the technology applications of Zu 30?

JAKA Zu 30 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of JAKA Zu 30:Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplied or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

A sleek interface displays a robotic arm shaping a surfboard model.

JAKA Zu 30 applications programmed with ENCY Robot

A robotic arm performs a pick-and-place operation with an object.

Pick-and-Place

A robotic arm polishes a circular metal surface with precision.

Polishing

Frequently asked questions

Can JAKA Zu 30 be programmed with ENCY Robot?

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase JAKA Zu 30 or request a quote, please contact the manufacturer or an authorized local supplier.
