JAKA Zu 5

Cobot

Jaka6 axesDigital twin for ENCY Robot

About

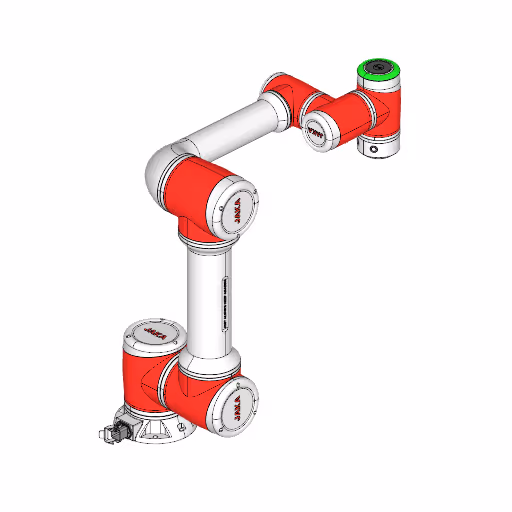

The Cobot JAKA Zu 5 is a versatile 6-axis robotic arm designed for industrial automation applications with a payload capacity of 5 kg and a reach of 954 mm. Equipped with precise repeatability of 0.020 mm and a robust maximum speed of 3 m/s, it supports flexible mounting in any orientation, including floor, wall, or ceiling. With an IP54 rating for the robot body and IP44 for the control cabinet, this cobot operates efficiently in cleanroom environments up to ISO Class 5 and features extensive safety functions and communication options, making it a reliable choice for various automation tasks.

What are the technology applications of Zu 5?

JAKA Zu 5 is a versatile robot suitable for a wide range of industrial applications. Primary applications of JAKA Zu 5: Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.

JAKA Zu 5 applications programmed with ENCY Robot

Pick and place

Polishing

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase JAKA Zu 5 or request a quote, please contact the manufacturer or an authorized local supplier.

Download JAKA Zu 5 digital twin

Start for free

Specifications

General

Type: Cobot
Brand: Jaka
Model: Zu 5
Axes: 6

Performance

Payload: 5 kg
Reach: 954 mm
Repeatability: 0.020 mm
Weight: 23 kg
Maximum speed: 3 m/s
Speed at rated payload: 3000 mm/s

Environment

IP rating: IP54 (robot body), IP44 (control cabinet)
Mounting orientation: Any angle: floor, wall, ceiling
Cleanroom class: ISO Class 5

Integration

Controller: CAB 2.1
Power supply: 100-240 VAC, 50/60 Hz
Power consumption: 350 W
Tool flange: M8 connector, Tool I/O: 2 digital inputs / 2 digital outputs / 1 analog input; Tool I/O power 24V
Communication interfaces: TCP/IP, Modbus TCP, Modbus RTU, Profinet, Ethernet/IP, RS-485
Safety functions: 28 safety functions including emergency stop, safeguard stop, motion status, hand-guided mode, speed monitoring, torque/power limitation, collision protection, position monitoring (PL d / Category 3 or 2 depending on function)
Certifications: CR, CE, ISO 15066, GB 11291.1-2011
