JAKA Pro 5

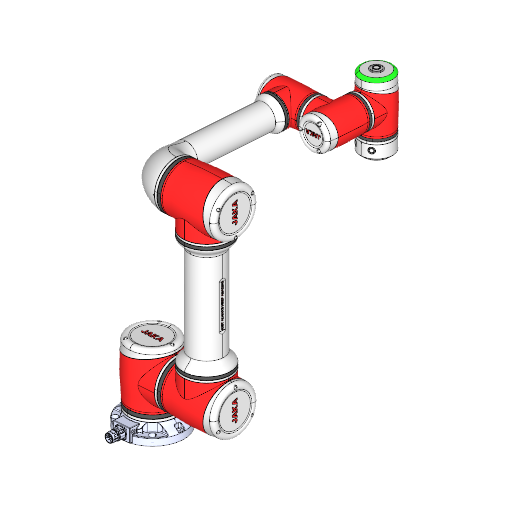

Cobot JAKA Pro 5

Specifications

Type

Cobot

Brand

Jaka

Model

Pro 5

Axes

6

Payload

5 kg

Reach

954 mm

Repeatability

0.02 mm

Weight

23 kg

Speed at rated payload

3000 mm/s

IP rating

IP68 (arm), IP44 (base or I/O cabinet)

Operating temperature range

-10 to 50 °C

Mounting orientation

Any angle

Controller

CAB 2.1

Power supply

100-240 VAC, 50-60 Hz

Power consumption

350 W

Tool flange

ISO 9409-1:2004 flange with location pin holes, offset 45° clockwise

Certifications

GB 11291.1-2011, ISO 10218-1, EN ISO 13849-1

Cleanroom class

ISO Class 5 (optional)

Safety functions

28 safety functions including emergency stop, safeguard stop, motion status, hand-guided mode protection, speed monitoring, torque/power limits, collision protection, position monitoring etc.

Communication interfaces

TCP/IP, Modbus TCP, Modbus RTU, Profinet, Ethernet/IP

Download JAKA Pro 5 digital twin

Start for free
The Cobot JAKA Pro 5 is a highly versatile 6-axis collaborative robot, designed to handle payloads of up to 5 kg with a reach of 954 mm. With a maximum speed of 3000 mm/s and a repeatability of just 0.02 mm, this 23 kg robotic arm operates efficiently across a temperature range of -10 to 50 °C and is built to meet IP68 standards, ensuring durability in various environments. Equipped with a CAB 2.1 controller and multiple communication interfaces, the JAKA Pro 5 is ideal for diverse industrial automation applications, prioritizing safety with 28 built-in functions.
3D View

What are the technology applications of Pro 5?

JAKA Pro 5 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of JAKA Pro 5:Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplied or the manufacturer.
