Industrial Robot KUKA KR 10 R1420 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Kuka

Model

KR 10 R1420

Axes

Payload

10 kg

Reach

1420 mm

Repeatability

0.040 mm

Weight

160 kg

IP rating

IP54 (wrist also IP54 in standard version)

Operating temperature

5 to 45 °C

Mounting orientation

Floor, Ceiling, Wall, Desired angle

Controller

KR C4 smallsize-2; KR C4 compact

Tool flange

Mounting flange KUKA smartPAD; standard tool flange per IEC/ISO unspecified in source

Certifications

Communication interfaces

I/O expansion, PROFIBUS, PROFINET, Ethernet/IP, DeviceNet, image processing, conveyor belt synchronisation, safety control

The KUKA KR 10 R1420 is a versatile industrial robot designed for precise automation tasks, featuring six axes and a payload capacity of up to 10 kg. With a reach of 1420 mm and a repeatability of 0.040 mm, this robot excels in applications requiring high accuracy and efficiency. It operates within a temperature range of 5 to 45 °C and offers various mounting options, making it suitable for diverse industrial environments. The KUKA KR 10 R1420 is equipped with the KR C4 controller and supports multiple communication interfaces, ensuring seamless integration into existing automation systems.

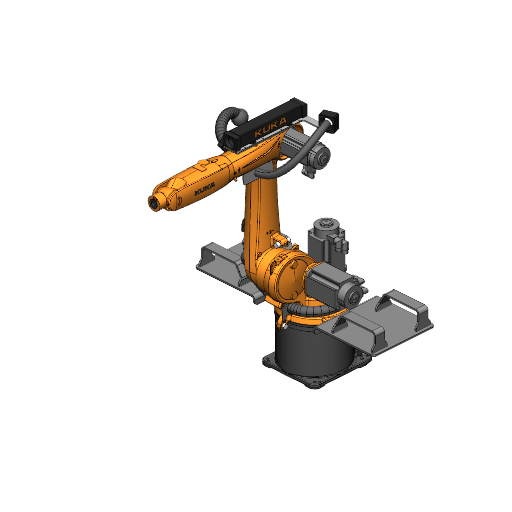

3D View

What are the technology applications of KR 10 R1420?

KUKA KR 10 R1420 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KUKA KR 10 R1420: Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

KUKA KR 10 R1420 applications programmed with ENCY Robot

Pick and place

Polishing

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase KUKA KR 10 R1420 or request a quote, please contact the manufacturer or an authorized local supplier.
