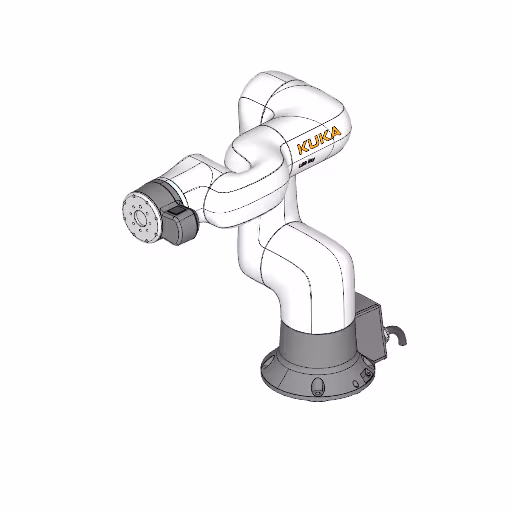

KUKA LBR iisy 3 R760

Cobot KUKA LBR iisy 3 R760

Specifications

Type

Cobot

Brand

Kuka

Model

LBR iisy 3 R760

Axes

6

Payload

3 kg

Reach

760 mm

Repeatability

0.1 mm

Weight

22.8 kg

Speed at rated payload

400 °/s

IP rating

IP30

Operating temperature range

5 to 45 °C

Mounting orientation

Floor, Wall, Ceiling, Desired angle

Controller

KR C5 micro

Tool flange

Mounting flange standard ISO 9409-1-50-7-M6

Certifications

ESD requirements IEC 61340-5-1; ANSI/ESD S20.20

Safety functions

Safety requirements Category 3, Performance Level d (EN ISO 13849-1); Axis speed monitoring; Cartesian velocity monitoring; Orientation monitoring; Hand-guiding; Collision detection; Safety workspaces with monitoring blocks; Emergency stop on SmartPAD pro

Communication interfaces

1 Gbit Ethernet, EtherCAT, PROFINET, Ethernet/IP, internal data cable XF74 (M12 X-coded), I/O cable XG76 (M12 8-pole)

Download KUKA LBR iisy 3 R760 digital twin

Start for free
The Cobot KUKA LBR iisy 3 R760 is a versatile 6-axis lightweight robot designed for industrial automation applications, offering a payload capacity of 3 kg and a reach of 760 mm. With high repeatability of 0.1 mm and a maximum speed of 400 °/s, this robot is engineered for precision and efficiency in various operational environments, including floor, wall, and ceiling mounting orientations. It features advanced safety functions and robust communication interfaces, making it an ideal choice for integrating into modern automated systems.
3D View

What are the technology applications of LBR iisy 3 R760?

KUKA LBR iisy 3 R760 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KUKA LBR iisy 3 R760:Assembly, Deburring, Dispensing, Pick and place, Polishing. But we recommend to consult with your robot supplied or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

A sleek interface displays a robotic arm shaping a surfboard model.

KUKA LBR iisy 3 R760 applications programmed with ENCY Robot

A robotic arm performs a pick-and-place operation with an object.

Pick-and-Place

A robotic arm polishes a circular metal surface with precision.

Polishing

Frequently asked questions

Can KUKA LBR iisy 3 R760 be programmed with ENCY Robot?

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase KUKA LBR iisy 3 R760 or request a quote, please contact the manufacturer or an authorized local supplier.

Other Cobot by Kuka

Details

KUKA LBR iisy 15 R930

Details

KUKA LBR iisy 11 R1300

Details

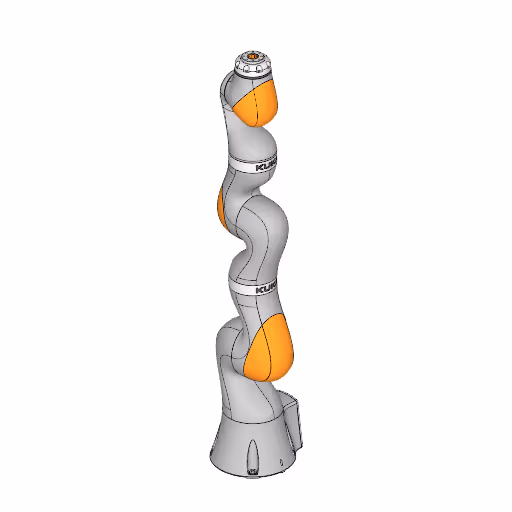

KUKA iiwa7 R800 - MF Touch pneumatisch
