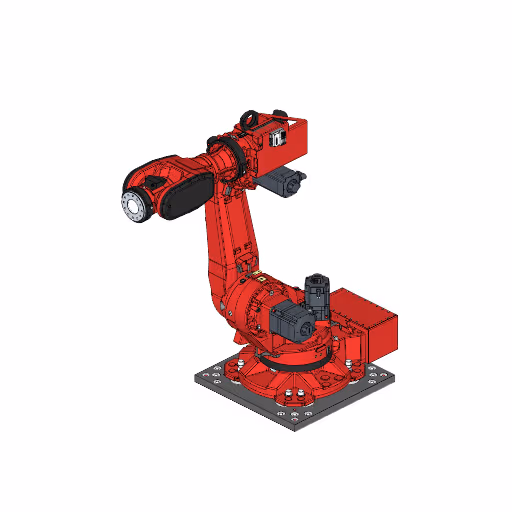

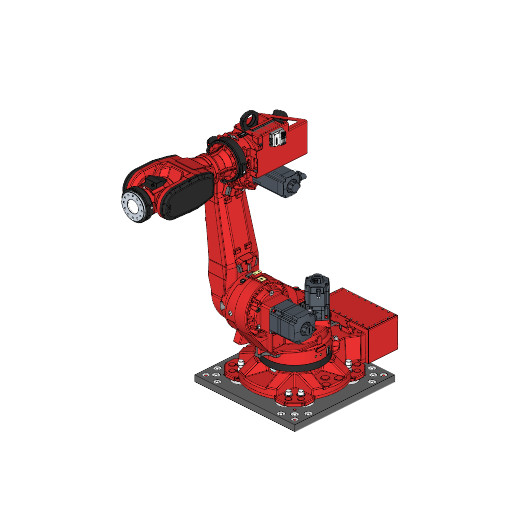

MABI MAX-100-2.25-P

Specifications

Type

Industrial Robot

Brand

MABI

Model

MAX-100-2.25-P

Axes

Payload

100 kg

Reach

2244.5 mm

Repeatability

0.02 mm

Weight

1150 kg

IP rating

IP65

Operating temperature range

+5 to +45 °C

Mounting orientation

Floor, floor mounted in 5° angle

Controller

Siemens SINUMERIK ONE

Power supply

>380 – 480 VAC, 50/60 Hz

Tool flange

DIN ISO 9409-1 160-11 M12

Certifications

CE; ISO 9001:2015; compliant with ISO 10218 (industrial robot safety standards)

Safety functions

Cartesian safety system with freely definable virtual protection areas; fail-safe PLC safety controller that constantly monitors robot movements

Communication interfaces

Digital I/O (M17 17-pin), Power (M23 6-pin), M12 8-pin X-coded and A-coded; pneumatic interface axes; CNC interface via Siemens SINUMERIK ONE

Download MABI MAX-100-2.25-P digital twin

The Industrial Robot MABI MAX-100-2.25-P is a highly versatile automation solution featuring six axes and a payload capacity of 100 kg. With an impressive reach of 2244.5 mm and a repeatability of 0.02 mm, this robust robot operates efficiently in a range of environments, maintaining a maximum speed of 170 °/s on the sixth axis. Designed for floor mounting at a 5° angle, the MABI MAX-100-2.25-P is equipped with advanced safety functions and seamless communication interfaces, ensuring compliance with ISO 10218 standards for industrial robot safety.

What are the technology applications of MAX-100-2.25-P?

MABI MAX-100-2.25-P is a versatile robot suitable for a wide range of industrial applications.

Primary applications of MABI MAX-100-2.25-P:Assembly, Dispensing, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplied or the manufacturer.
