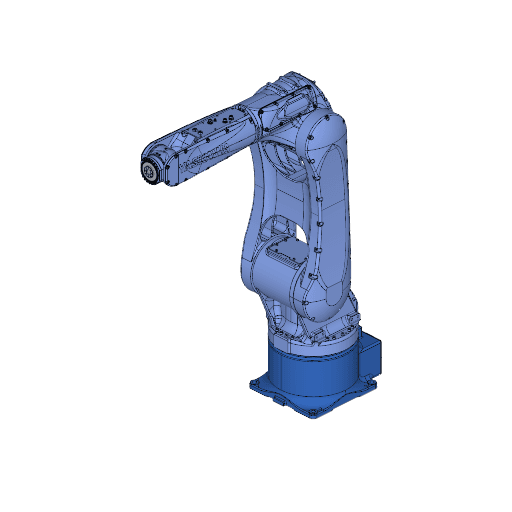

Industrial Robot MOTOMAN NEX20 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Motoman

Model

NEX20

Axes

Payload

20 kg

Reach

1552 mm

Repeatability

0.02 mm

Weight

225 kg

Maximum speed

900 °/s (T-axis)

IP rating

IP67

Mounting orientation

Floor

Controller

MOTOMAN NEXT (with integrated NVIDIA-based ACU)

Power supply

2 kVA

Certifications

Compliant with applicable industrial robot safety standards (e.g. ANSI/RIA), dual-channel safety (E-Stop), safety I/O; controller meets Machine Safety and Functional Safety requirements

Safety functions

Robot Range Limiting; Functional Safety Units; Machine Safety Signals; Safety Re-Teach Function

Communication interfaces

Ethernet LAN1, LAN2, LAN3; EtherNet/IP via LAN2; FTP; FTP Server; Concurrent I/O via TCP/IP; RS-232 (serial) [depending on controller models]

The Industrial Robot MOTOMAN NEX20 is a cutting-edge automation solution designed for efficiency and precision in industrial applications. With six axes of movement, a payload capacity of 20 kg, and a reach of 1552 mm, this robot offers exceptional repeatability of 0.02 mm, making it ideal for complex tasks. Equipped with the advanced MOTOMAN NEXT controller, it features robust safety functions and multiple communication interfaces, ensuring seamless integration into your automation system while maintaining compliance with stringent safety standards.

3D View

What are the technology applications of NEX20?

MOTOMAN NEX20 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of MOTOMAN NEX20: Assembly, Deburring, Machine Tending, Pick and place, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

MOTOMAN NEX20 applications programmed with ENCY Robot

Pick and place

Robot welding

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase MOTOMAN NEX20 or request a quote, please contact the manufacturer or an authorized local supplier.
