Industrial Robot NACHI MZ07-01 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Nachi

Model

MZ07-01

Axes

Payload

7 kg

Reach

723 mm

Repeatability

0.020 mm

Weight

30 kg

Maximum speed

1000 °/s (J6 axis)

Speed at rated payload

1000 °/s

IP rating

IP67

Mounting orientation

Floor / Wall / Tilted / Inverted mount

Controller

CFD Controller

Power supply

AC 200-230V, single-phase or three-phase, 50/60Hz

Power consumption

0.4 kVA

Certifications

Conforms to JIS B 8432; RoHS compliant; meets international safety standards including ISO 13849-1, ISO 10218-1 where applicable via RMU; certifications for cleanroom compliance

Cleanroom class

ISO 14644-1 Class 4

Safety functions

Safety Function PLd Category-3

Communication interfaces

EtherNet, Fieldbus: DeviceNet, EtherNet/IP, PROFIBUS, PROFINET, CC-Link

The Industrial Robot NACHI MZ07-01 is a versatile six-axis robot designed for precision and reliability in various automation applications. With a payload capacity of 7 kg and a reach of 723 mm, this robot boasts a repeatability of 0.020 mm, ensuring accurate performance even in demanding environments. Equipped with a CFD Controller and an IP67 rating, the NACHI MZ07-01 is suitable for cleanroom operations and features multiple mounting orientations, making it an ideal solution for advanced industrial automation needs.

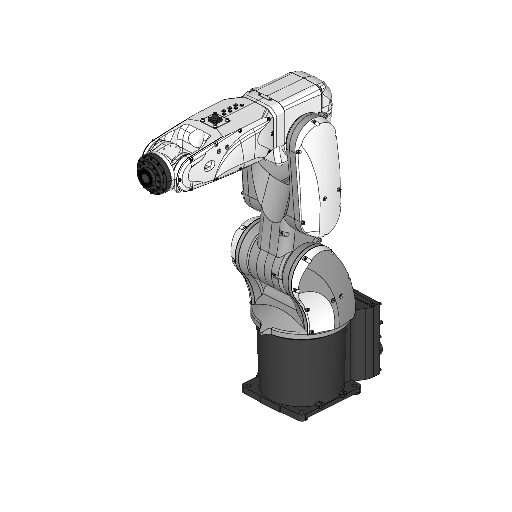

3D View

What are the technology applications of MZ07-01?

NACHI MZ07-01 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of NACHI MZ07-01: Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

NACHI MZ07-01 applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot milling

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase NACHI MZ07-01 or request a quote, please contact the manufacturer or an authorized local supplier.
