NACHI MZ07F-01

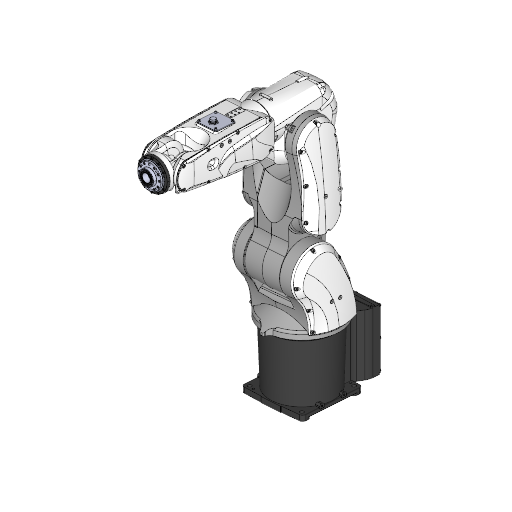

Industrial Robot NACHI MZ07F-01

Specifications

Type

Industrial Robot

Brand

Nachi

Model

MZ07F-01

Axes

6

Payload

7 kg

Reach

723 mm

Repeatability

0.015 mm

Weight

41 kg

Speed at rated payload

520 °/s (J3 axis at rated payload)

IP rating

IP67 equivalent (robot body/arm), controller IP20

Mounting orientation

Floor / Wall / Tilted / Inverted mount

Controller

CFD Controller

Power supply

200-230 VAC, single-phase or three-phase, 50/60 Hz

Power consumption

0.4 kVA

Tool flange

Proprietary wrist mounting face with wire hole; M5 tool fixing bolts; standard P.C.D shown in specs

Certifications

IP67, JIS B 8432 conformance, ISO cleanroom standard ISO 14644-1 Class 4

Cleanroom class

ISO Class 4

Safety functions

PLd Category-3, external emergency stop, protective stop, speed and position monitoring (via RMU)

Communication interfaces

ProfiNet (standard), alternative: EtherNet/IP, EtherCAT

Download NACHI MZ07F-01 digital twin

Start for free
The NACHI MZ07F-01 Industrial Robot is a versatile and high-performance automation solution equipped with six axes and a payload capacity of 7 kg. With a reach of 723 mm and exceptional repeatability of 0.015 mm, this robot is ideal for precision tasks in cleanroom environments, boasting an IP67 rating for both the robot body and arm. Designed for various mounting configurations, the MZ07F-01 operates efficiently at maximum speeds of 1000 °/s and features advanced safety functions, making it a reliable choice for industrial automation applications.
3D View

What are the technology applications of MZ07F-01?

NACHI MZ07F-01 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of NACHI MZ07F-01:Assembly, Dispensing, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplied or the manufacturer.
