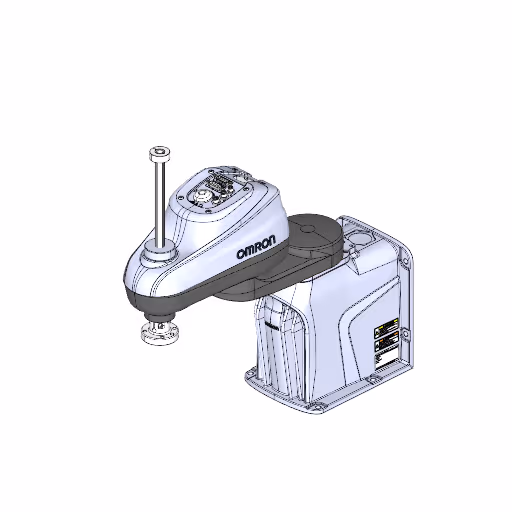

OMRON RS4-2053002
Specifications
Type
SCARA
Brand
OMRON
Model
RS4-2053002
Axes
4
Payload
5 kg
Reach
350 mm
Repeatability
0.01 mm
Weight
15.1 kg
Maximum speed
6.2 m/s
Speed at rated payload
305 mm/s
IP rating
IP20
Operating temperature
5 to 40 °C
Mounting orientation
Table, Wall
Controller
Not required (standard iCS-ENET type)
Power supply
24 VDC (5 A / 120 W) and 48 VDC (20 A / 960 W)
Power consumption
960 W
Communication interfaces
PROFINET, TCP/IP
The SCARA OMRON RS4-2053002 is a highly efficient 4-axis robotic arm designed for industrial automation tasks, featuring a payload capacity of 5 kg and a reach of 350 mm. With a remarkable repeatability of 0.01 mm and maximum speed of 6.2 m/s, this versatile component is suitable for various mounting orientations, including table and wall. Operating within a temperature range of 5 to 40 °C, it supports communication via PROFINET and TCP/IP, making it an excellent choice for seamlessly integrating into automation systems without requiring an additional controller.
